Weg Electric 03036ET3ER286TSC-W22, 30 Hp, 3600 Rpm, 286TSC Frame, 230/460//380 Vac, TEFC, 3 PH, Footless, W22 NEMA Premium Efficiency.

03036ET3ER286TSC-W22, 30 Hp, 3600 Rpm, 286TSC Frame, 230/460//380 Vac, TEFC, 3 PH, Footless, W22 NEMA Premium Efficiency.

Engineering Data

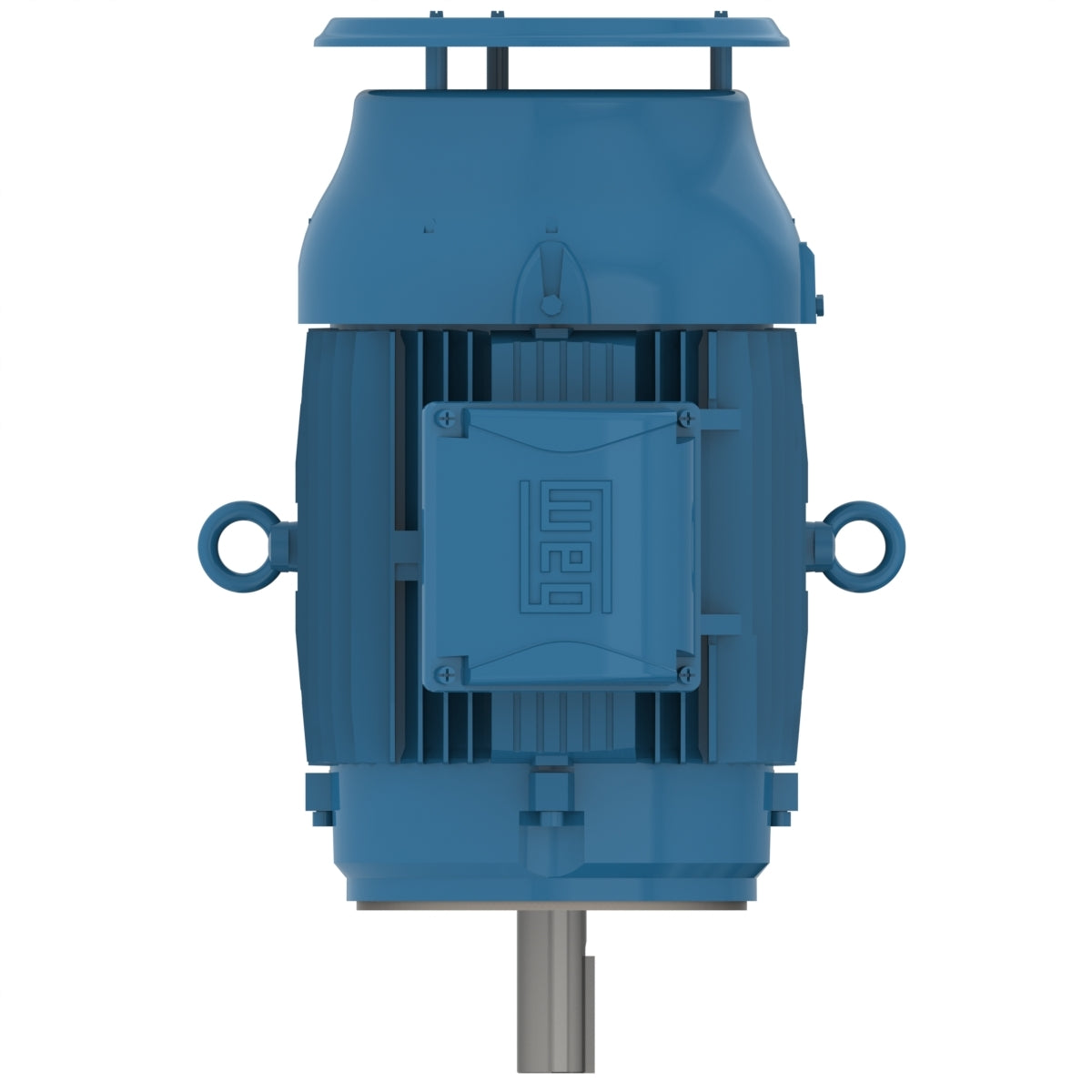

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 30 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 286TSC
Output 30 HP (22 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3540 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 68.4/34.2 A
L. R. Amperes 431/215 A
LRC 6.3x(Code G)
No load current 20.0/10.0 A
Rated torque 44.5 ft.lb
Locked rotor torque 200 %
Breakdown torque 250 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 3.37 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
