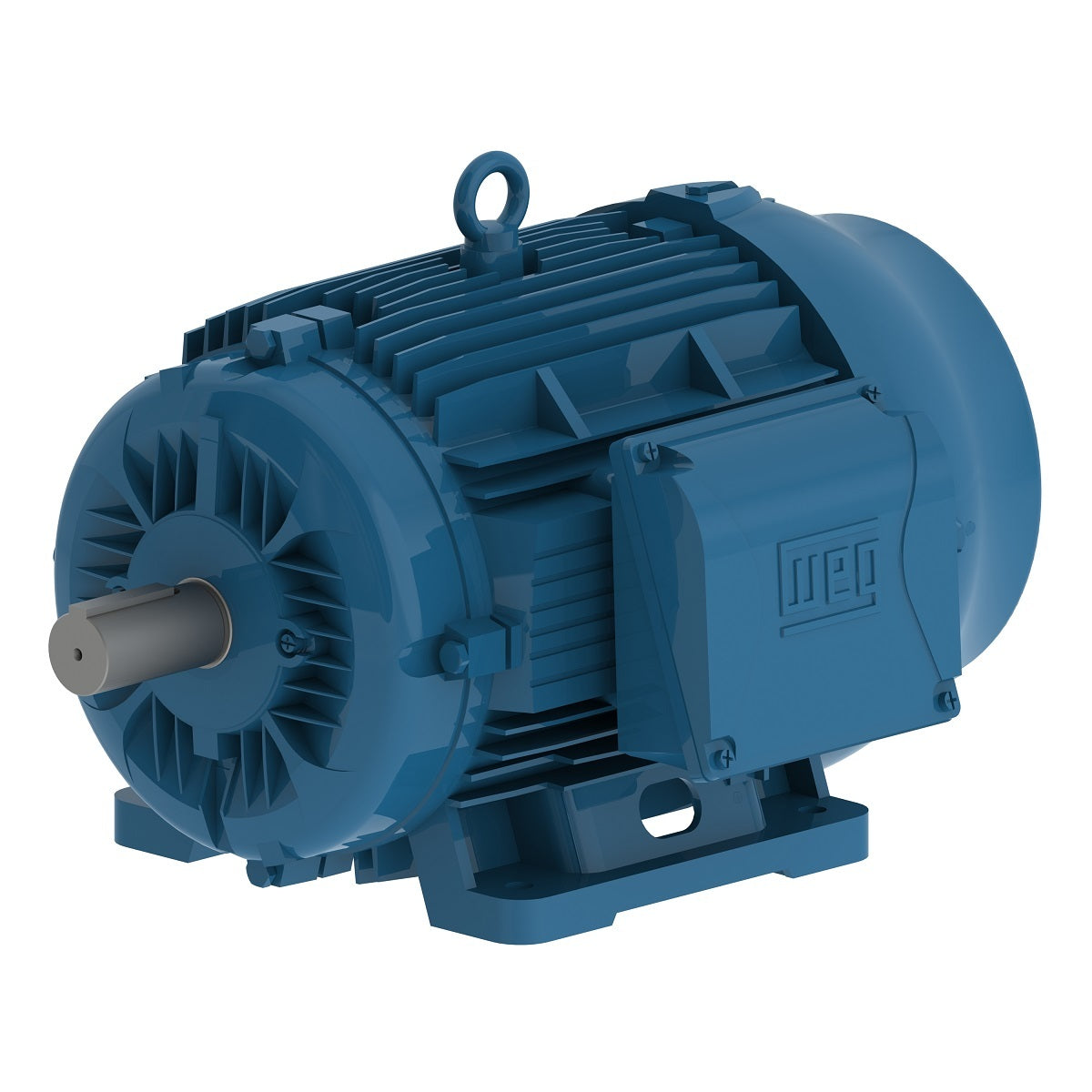

Weg Electric 03036ET3Y200L-W22, 40 Hp, 3600 Rpm, 200L Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

03036ET3Y200L-W22, 40 Hp, 3600 Rpm, 200L Frame, 460//380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460//380-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 40 HP
Mounting Foot-mounted
Flange Without
Mounting B3L(E)
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 200L
Output 40 HP (30 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3570 rpm
Slip 0.83 %
Rated voltage 460 V
Rated current 47.1 A
L. R. Amperes 410 A
LRC 8.7
No load current 18.0 A
Rated torque 58.8 ft.lb
Locked rotor torque 360 %
Breakdown torque 330 %
Locked rotor time 46s (cold) 26s (hot)
Moment of inertia (J) 4.44 sq.ft.lb
Design N
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3L(E)
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
