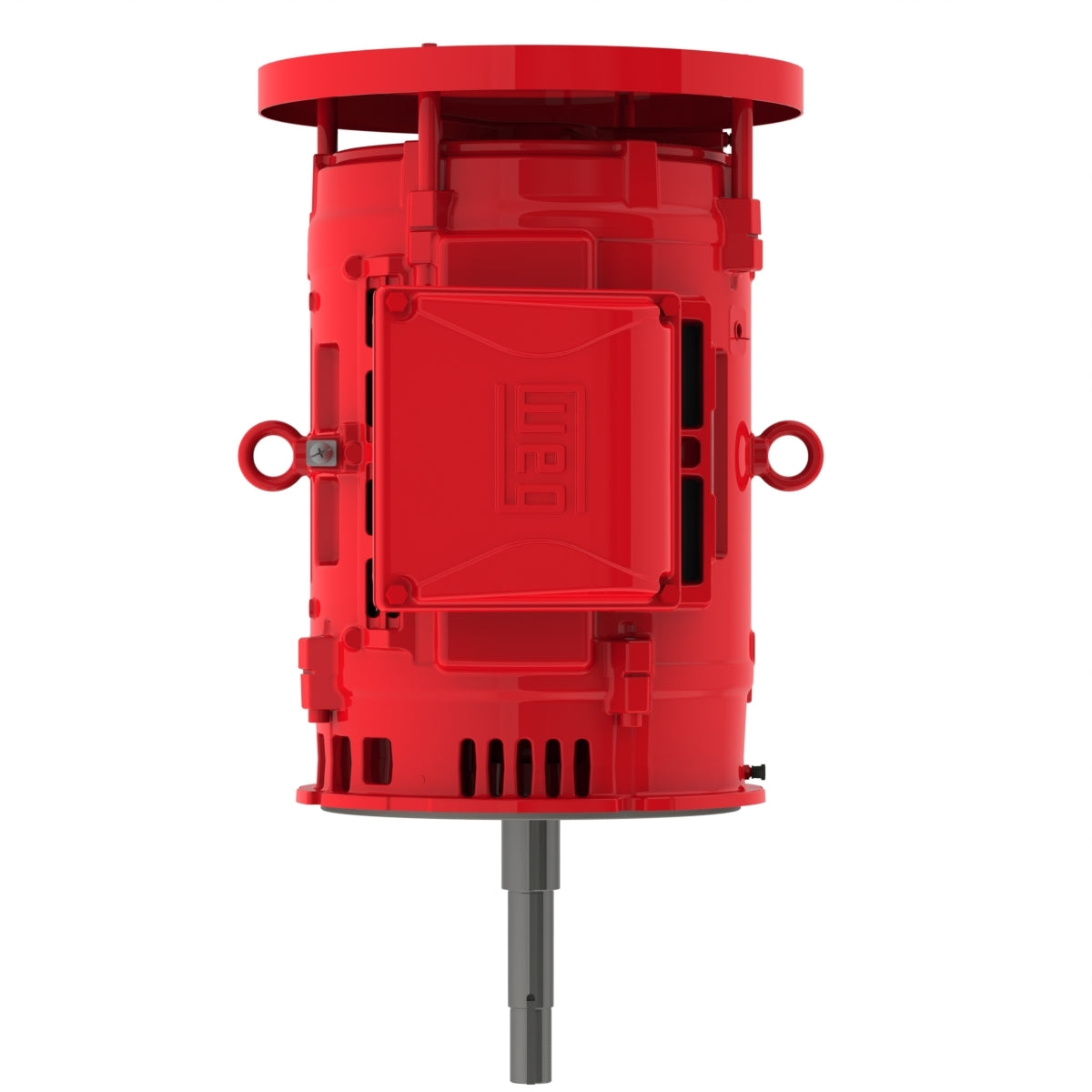

Weg Electric 03036OP3HFP284JPV-W4, 30 Hp, 3600 Rpm, 284/JP Frame, 575 Vac, TEFC, 3 PH, Footless, W40 JP Pump High Efficiency.

03036OP3HFP284JPV-W4, 30 Hp, 3600 Rpm, 284/JP Frame, 575 Vac, TEFC, 3 PH, Footless, W40 JP Pump High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 30 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 284/6JP
Output 30 HP (22 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3545 rpm
Slip 1.53 %
Rated voltage 575 V
Rated current 27.9 A
L. R. Amperes 173 A
LRC 6.2x(Code G)
No load current 8.80 A
Rated torque 44.4 ft.lb
Locked rotor torque 170 %
Breakdown torque 260 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 1.59 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
