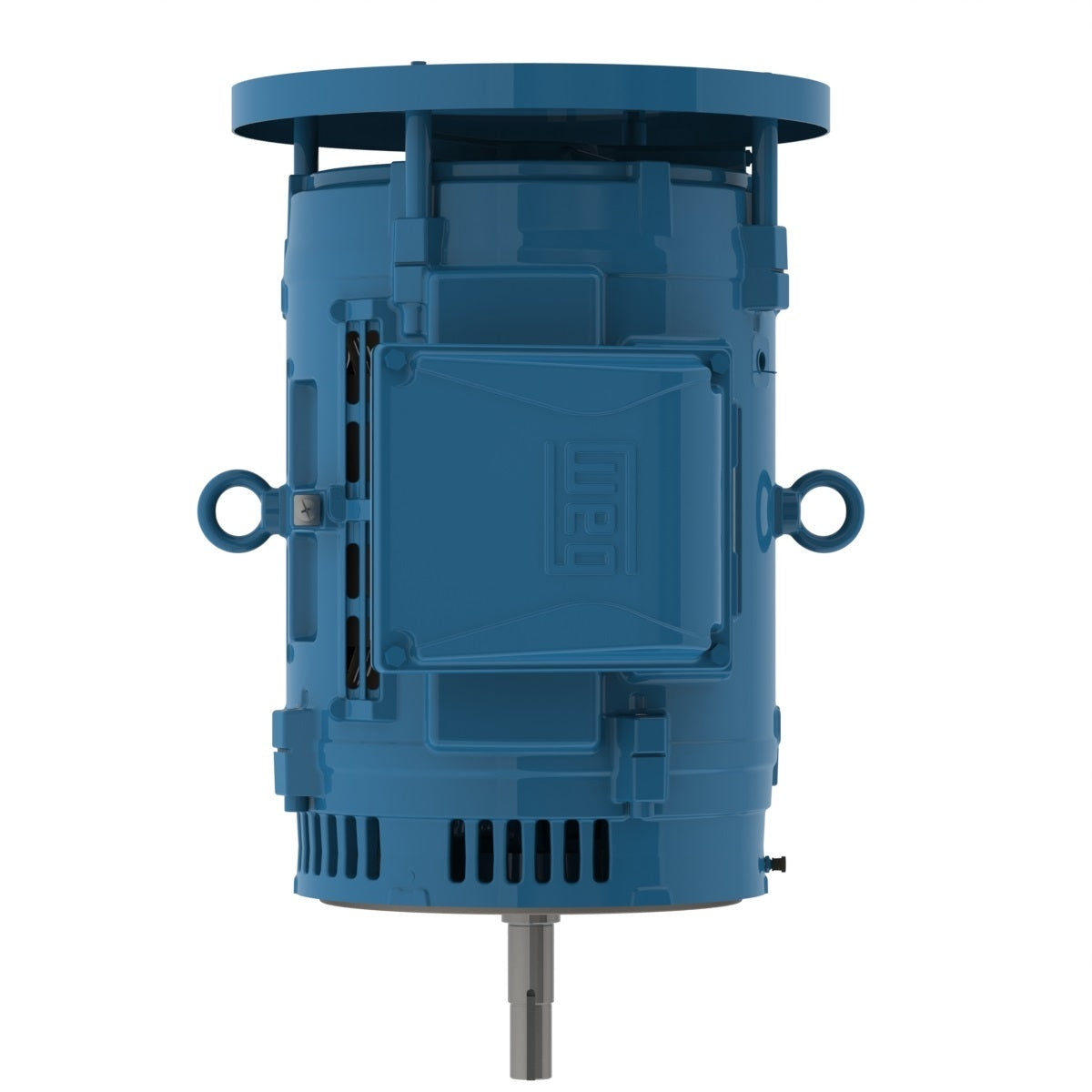

Weg Electric 03036OT3H284JPV-W40, 30 Hp, 3600 Rpm, 284/6JP Frame, 575 Vac, ODP, 3 PH, Footless, W40 JP Pump NEMA Premium Efficiency.

03036OT3H284JPV-W40, 30 Hp, 3600 Rpm, 284/6JP Frame, 575 Vac, ODP, 3 PH, Footless, W40 JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 30 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 284/6JP
Output 30 HP (22 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 575 V
Rated current 28.0 A
L. R. Amperes 176 A
LRC 6.3x(Code G)
No load current 10.3 A
Rated torque 44.4 ft.lb
Locked rotor torque 180 %
Breakdown torque 260 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 1.59 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
