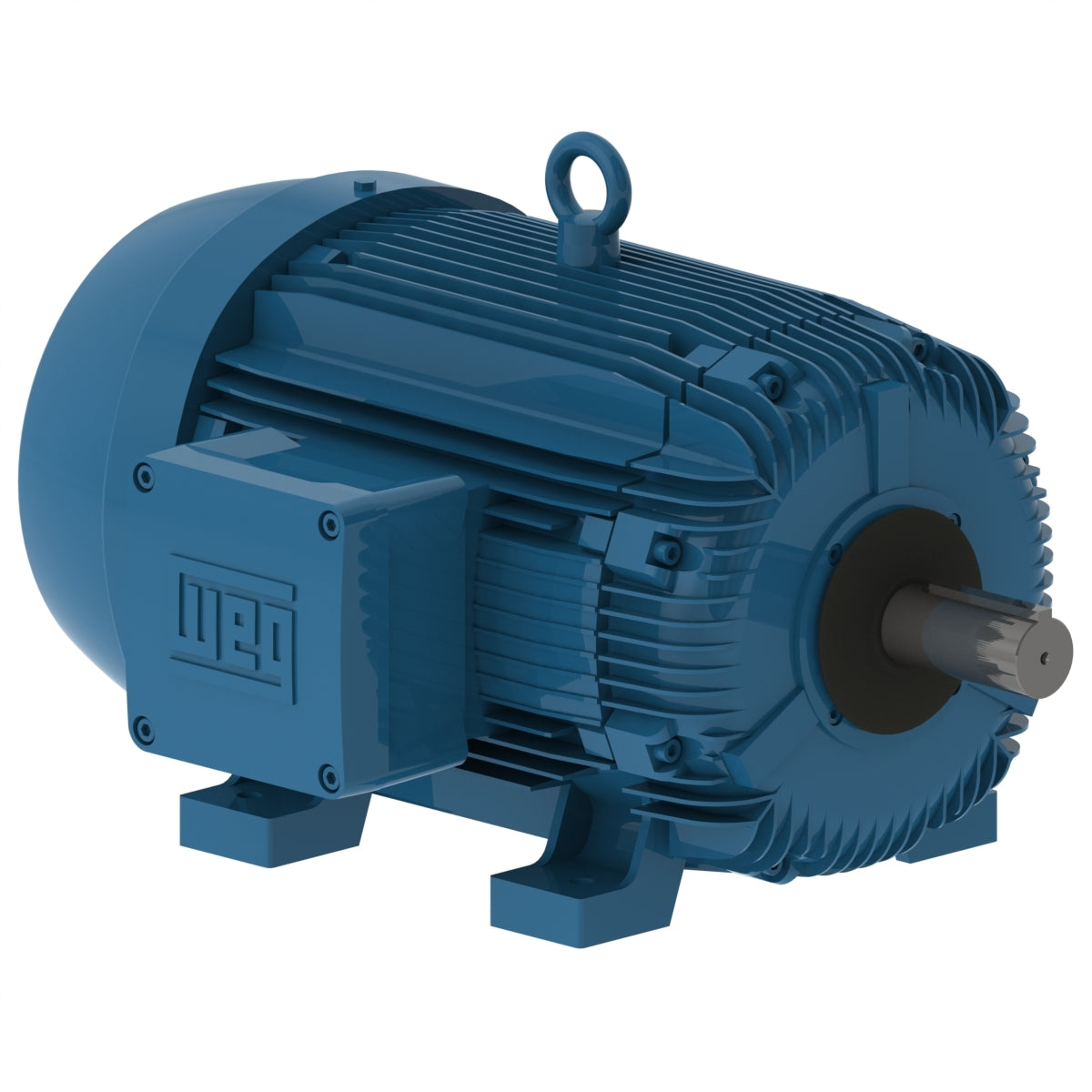

Weg Electric 03036XT3E286TS, 30 Hp, 3600 Rpm, 286TS Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-Mounted, Premium Efficiency.

03036XT3E286TS, 30 Hp, 3600 Rpm, 286TS Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-Mounted, Premium Efficiency.

Engineering Data

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 30 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 286TS
Output 30 HP (22 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3545 rpm
Slip 1.53 %
Rated voltage 230/460 V
Rated current 67.4/33.7 A
L. R. Amperes 452/226 A
LRC 6.7x(Code G)
No load current 15.0/7.50 A
Rated torque 44.4 ft.lb
Locked rotor torque 250 %
Breakdown torque 240 %
Locked rotor time 77s (cold) 43s (hot)
Moment of inertia (J) 3.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
