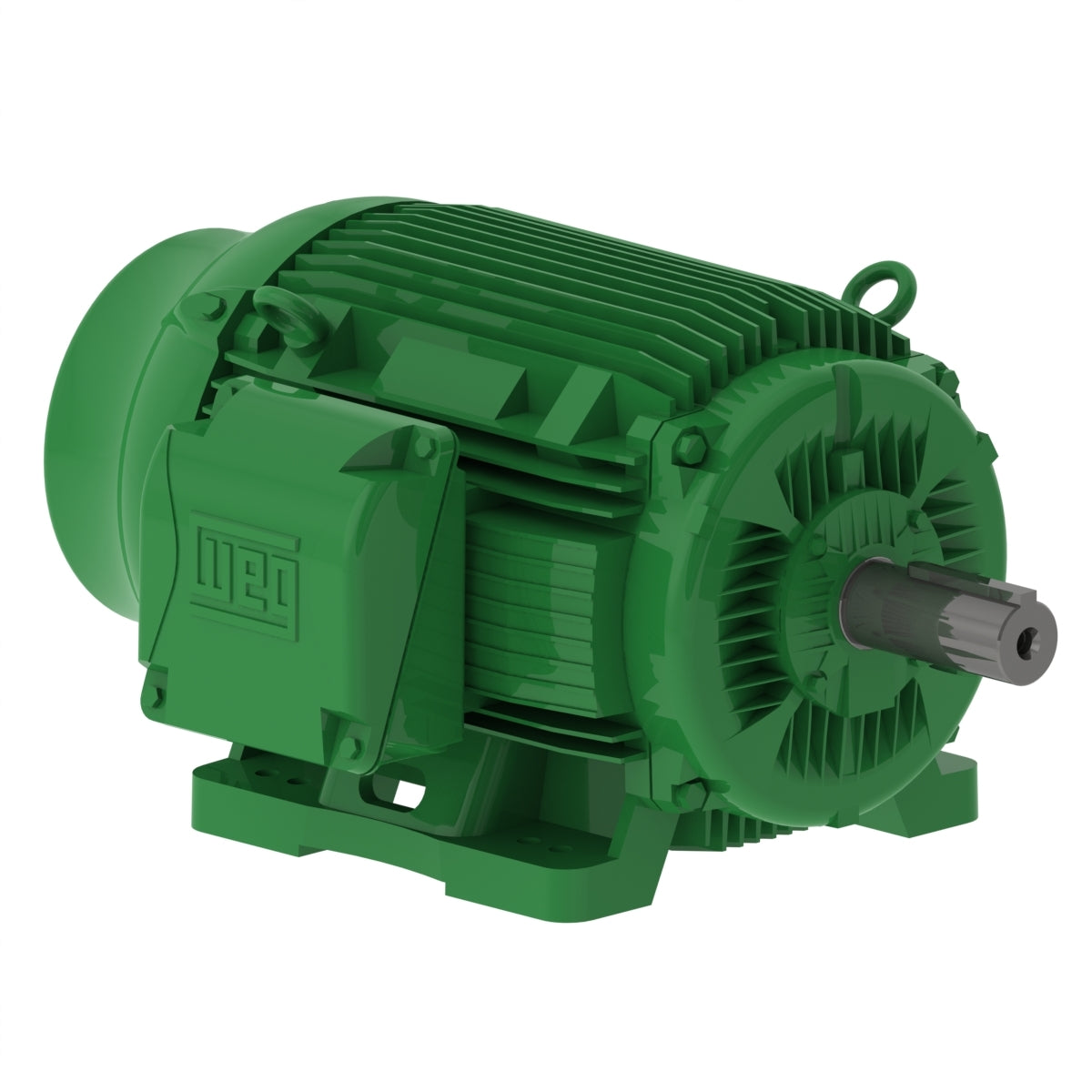

Weg Electric 04012EG3E364T-W22, 40 Hp, 1200 Rpm, 364/5T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Super Premium Efficiency.

04012EG3E364T-W22, 40 Hp, 1200 Rpm, 364/5T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Super Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Carry CSA Certified for Division 2 on the Nameplate as standard.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 40 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1190 rpm
Slip 0.83 %
Rated voltage 230/460 V
Rated current 97.8/48.9 A
L. R. Amperes 919/460 A
LRC 9.4x(Code L)
No load current 46.0/23.0 A
Rated torque 177 ft.lb
Locked rotor torque 260 %
Breakdown torque 320 %
Locked rotor time 55s (cold) 31s (hot)
Moment of inertia (J) 24.2 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
