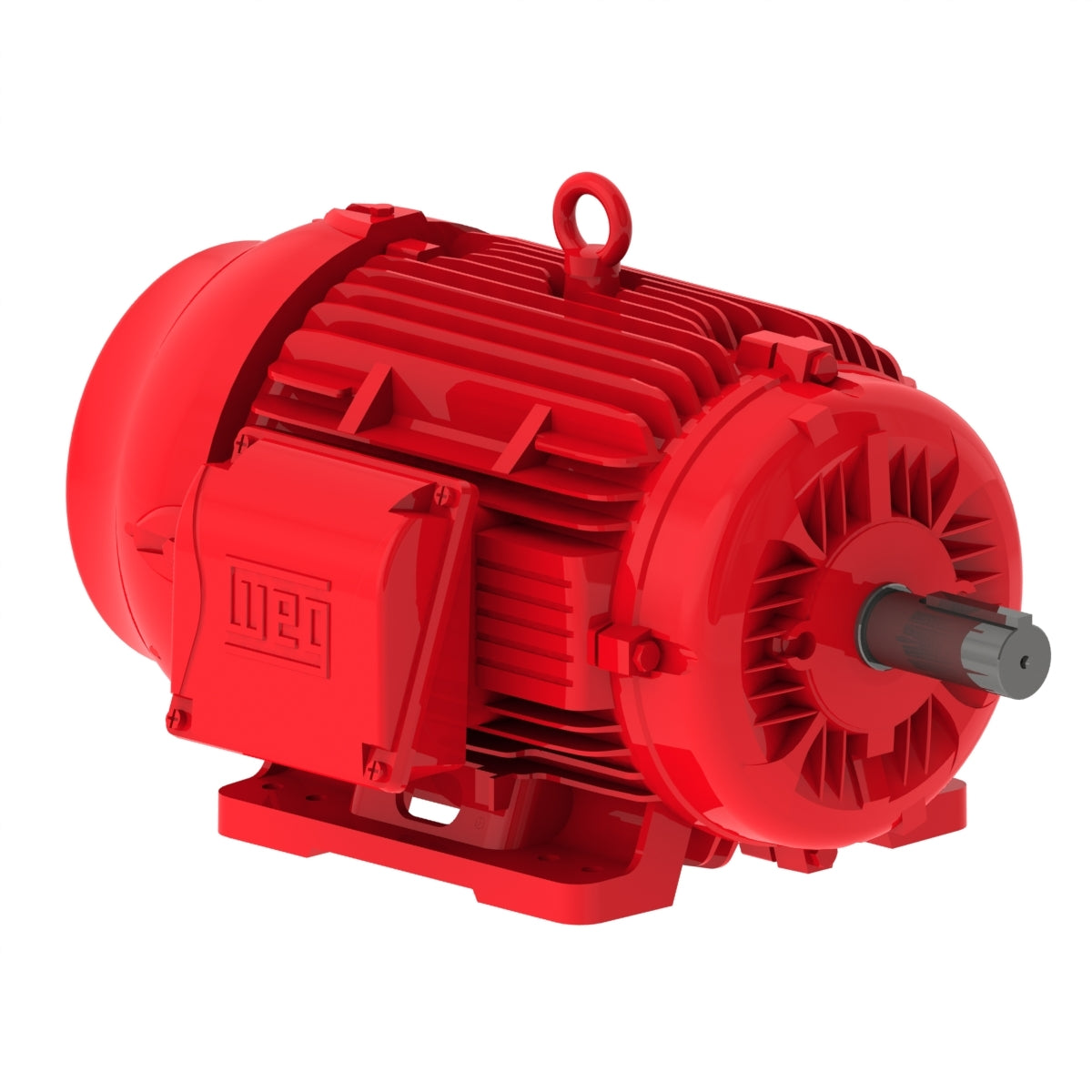

Weg Electric 04015EP3OFP324TS-W22, 40 Hp, 324/6TS Frame, 1500 RPM, 380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

04015EP3OFP324TS-W22, 40 Hp, 324/6TS Frame, 1500 RPM, 380-415 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 50 Hz
Voltage 380-415 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1500 rpm
Output rating 40 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 324/6TS
Output 40 HP (30 kW)
Number of Poles 4
Frequency 50 Hz
Rated speed 1470 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 57.0 A
L. R. Amperes 319 A
LRC 5.6x(Code F)
No load current 17.5 A
Rated torque 143 ft.lb
Locked rotor torque 180 %
Breakdown torque 215 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 6.98 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +50°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 65.0 dB(A)
