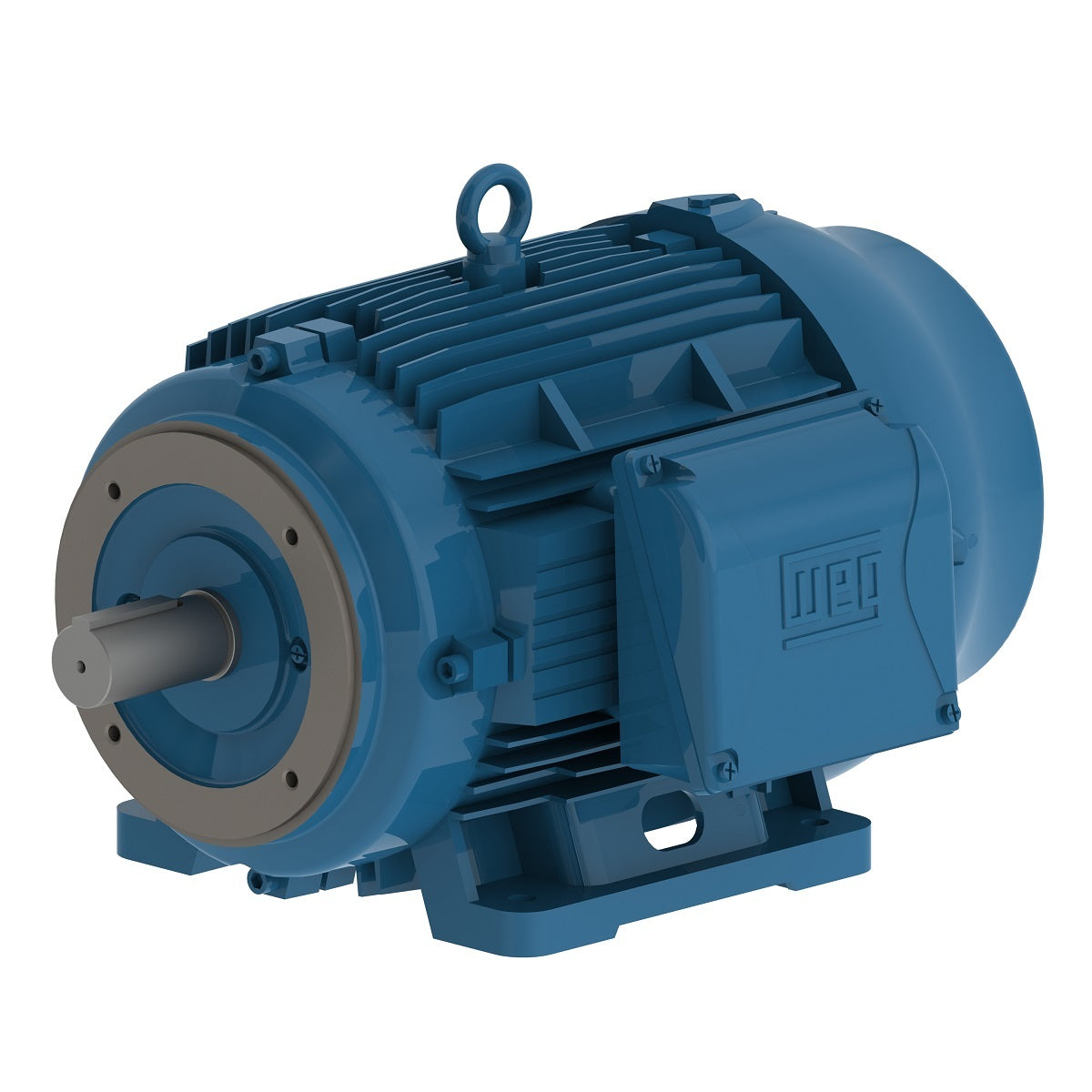

Weg Electric 04018ET3E324TCF2-W22, 40 Hp, 1800 Rpm, 324TC Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

04018ET3E324TCF2-W22, 40 Hp, 1800 Rpm, 324TC Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 40 HP
Mounting Foot-mounted
Flange C
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC
