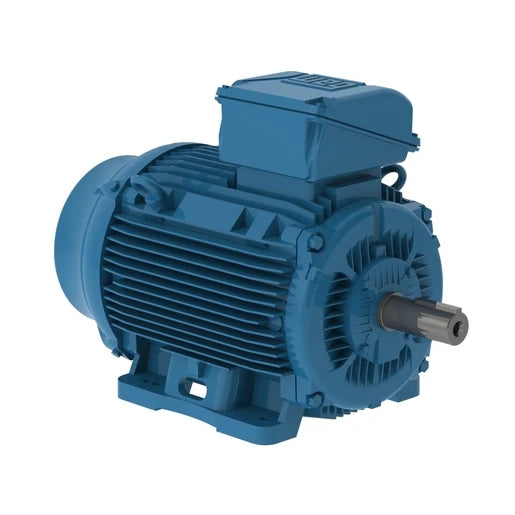

Weg Electric 04018ET3E324TF3-W22, 40 Hp, 1800 Rpm, 324T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 12610259

Weg Electric 04018ET3E324TF3-W22, 40 Hp, 1800 Rpm, 324T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 12610259

$4,183.00
$4,183.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 04018ET3E324TF3-W22, 40 Hp, 1800 Rpm, 324T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 12610259

SPECIFICATIONS

Frame 324T
Output 40 HP (30 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 230/460 V
Rated current 94.2/47.1 A
L. R. Amperes 574/287 A
LRC 6.1x(Code G)
No load current 34.6/17.3 A
Rated torque 118 ft.lb
Locked rotor torque 229 %
Breakdown torque 240 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-3
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 522 lb
