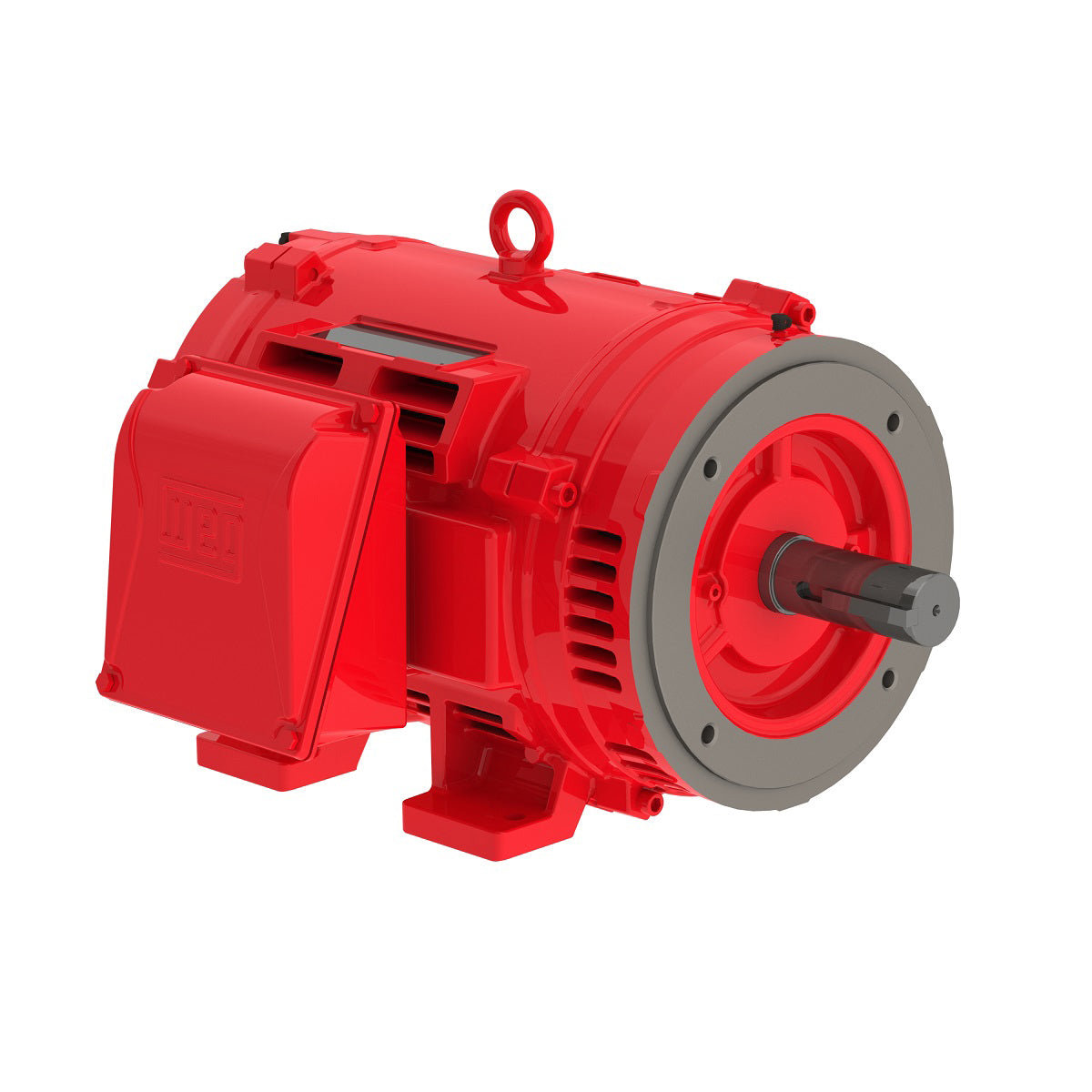

Weg Electric 04018OP3EFP324TC-W40, 40 Hp, 324TC Frame, 1800 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

04018OP3EFP324TC-W40, 40 Hp, 324TC Frame, 1800 RPM, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 40 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 324TC
Output 40 HP (30 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 230/460 V
Rated current 96.4/48.2 A
L. R. Amperes 578/289 A
LRC 6.0x(Code G)
No load current 32.0/16.0 A
Rated torque 118 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 5.37 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
