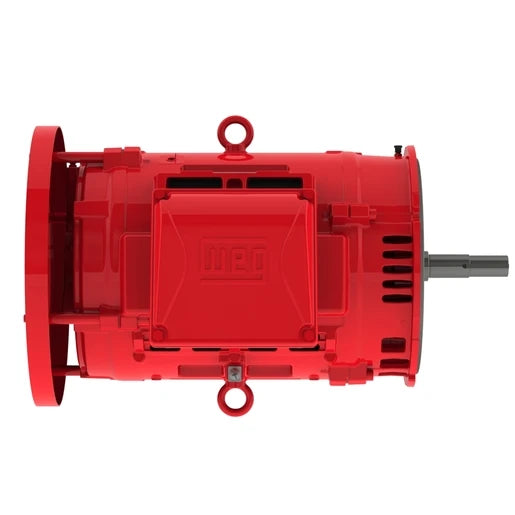

Weg Electric 04018OP3HFP324JMV-W4, 40 Hp, 1800 Rpm, 324/6JM FR, 575 Vac, ODP, 3 PH, Footless, W40 Pump JP NEMA Premium Efficiency, 14832417

Weg Electric 04018OP3HFP324JMV-W4, 40 Hp, 1800 Rpm, 324/6JM FR, 575 Vac, ODP, 3 PH, Footless, W40 Pump JP NEMA Premium Efficiency, 14832417

$3,222.69
$3,222.69
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 04018OP3HFP324JMV-W4, 40 Hp, 1800 Rpm, 324/6JM FR, 575 Vac, ODP, 3 PH, Footless, W40 Pump JP NEMA Premium Efficiency, 14832417

SPECIFICATIONS

Frame 324/6JM
Output 40 HP (30 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1770 rpm
Slip 1.67 %
Rated voltage 575 V
Rated current 39.0 A
L. R. Amperes 234 A
LRC 6.0x(Code G)
No load current 15.2 A
Rated torque 119 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 5.37 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Approx. weight³ 463 lb
