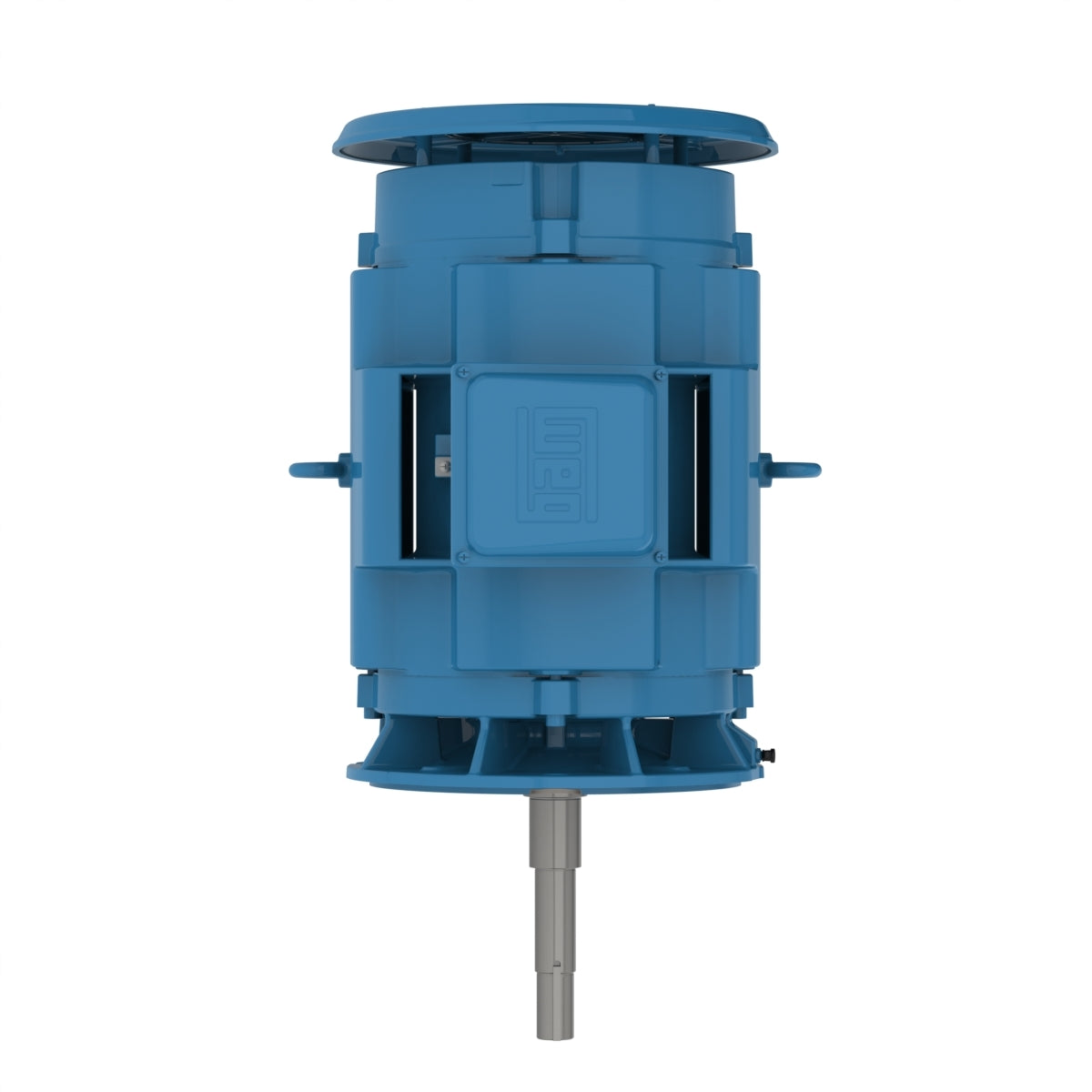

Weg Electric 04018OT3E324JMV, 40 Hp, 1800 Rpm, 324JM Frame, 230/460 Vac, ODP, 3 PH, Footless, Closed Coupled Pump NEMA Premium Efficiency.

04018OT3E324JMV, 40 Hp, 1800 Rpm, 324JM Frame, 230/460 Vac, ODP, 3 PH, Footless, Closed Coupled Pump NEMA Premium Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 40 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 324JM
Output 40 HP (30 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 230/460 V
Rated current 96.4/48.2 A
L. R. Amperes 598/299 A
LRC 6.2x(Code G)
No load current 37.0/18.5 A
Rated torque 118 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 50s (cold) 28s (hot)
Moment of inertia (J) 6.05 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 64.0 dB(A)
