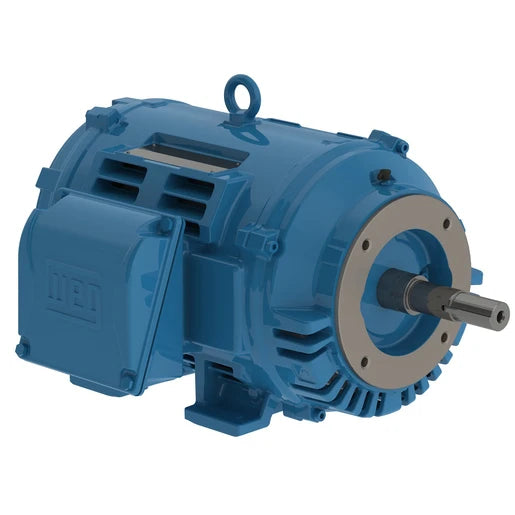

Weg Electric 04018OT3H324JM-W40, 40 Hp, 1800 Rpm, 324JM FR, 575 Vac, ODP, 3 PH, Foot-Mounted, W40 Pump JP NEMA Premium Efficiency, 14484721

Weg Electric 04018OT3H324JM-W40, 40 Hp, 1800 Rpm, 324JM FR, 575 Vac, ODP, 3 PH, Foot-Mounted, W40 Pump JP NEMA Premium Efficiency, 14484721

$3,379.33
$3,379.33
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 04018OT3H324JM-W40, 40 Hp, 1800 Rpm, 324JM FR, 575 Vac, ODP, 3 PH, Foot-Mounted, W40 Pump JP NEMA Premium Efficiency, 14484721

SPECIFICATIONS

Frame 324JM
Output 40 HP (30 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 575 V
Rated current 38.1 A
L. R. Amperes 236 A
LRC 6.2x(Code G)
No load current 14.8 A
Rated torque 118 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 5.69 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 460 lb
