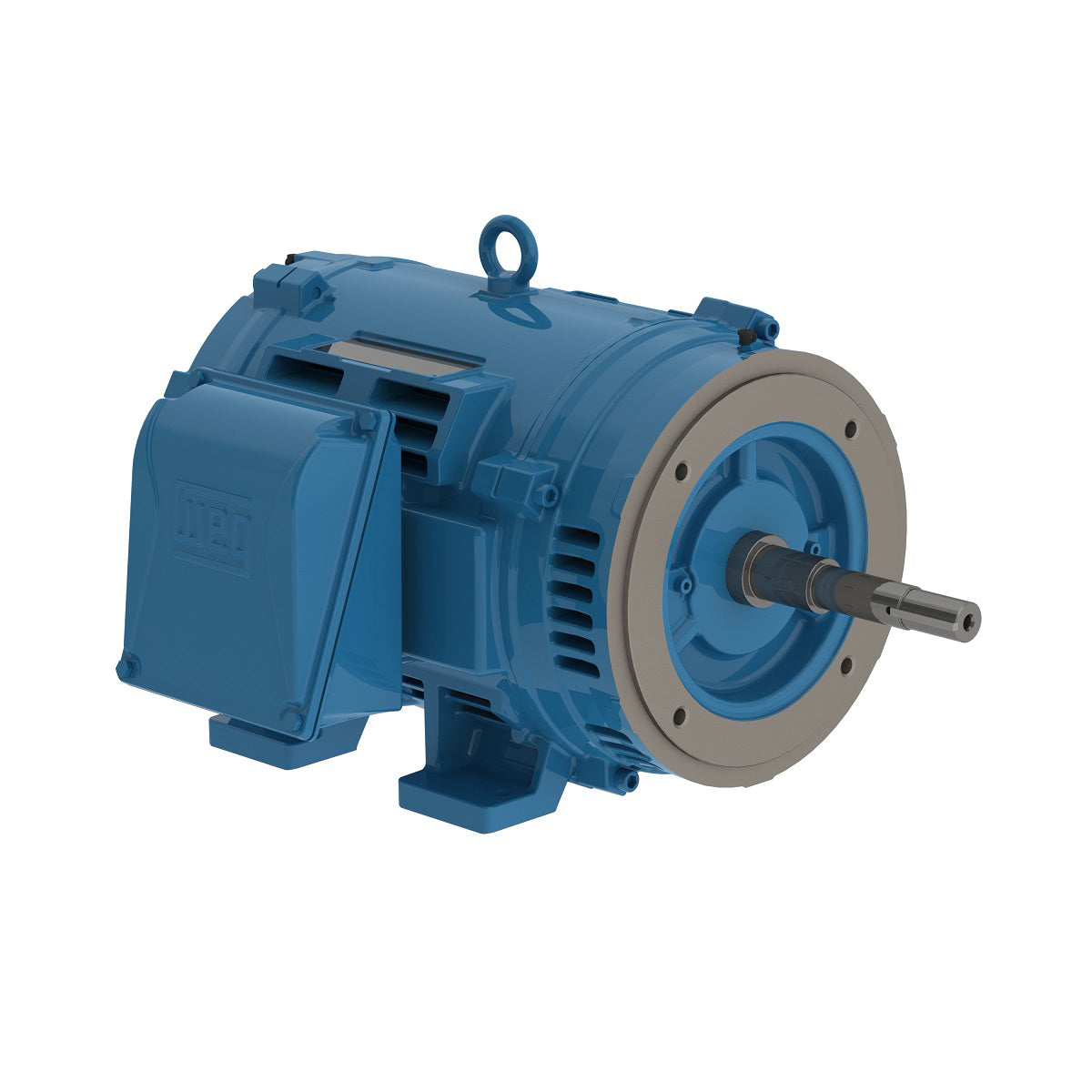

Weg Electric 04018OT3H324JP-W40, 40 Hp, 1800 Rpm, 324JP Frame, 575 Vac, ODP, 3 PH, Foot-mounted, W40 JP Pump NEMA Premium Efficiency.

04018OT3H324JP-W40, 40 Hp, 1800 Rpm, 324JP Frame, 575 Vac, ODP, 3 PH, Foot-mounted, W40 JP Pump NEMA Premium Efficiency.

Engineering Data

The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 40 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP
