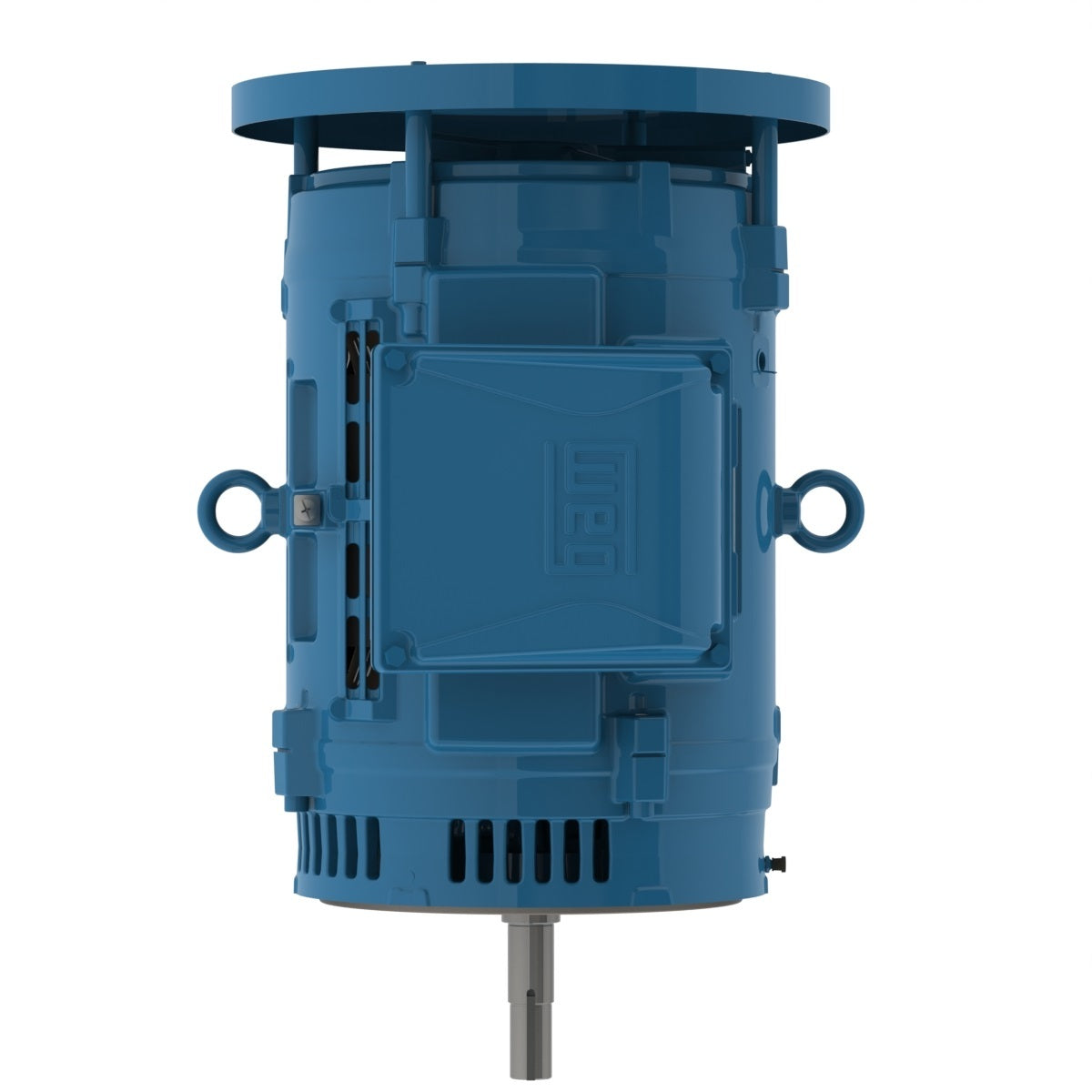

Weg Electric 04018OT3V324JPV-W40, 40 Hp, 1800 Rpm, 324/6JP Frame, 200/400 Vac, ODP, 3 PH, Footless, W40 JP Pump NEMA Premium Efficiency.

04018OT3V324JPV-W40, 40 Hp, 1800 Rpm, 324/6JP Frame, 200/400 Vac, ODP, 3 PH, Footless, W40 JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 40 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 324/6JP
Output 40 HP (30 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 200/400 V
Rated current 109/54.7 A
L. R. Amperes 679/339 A
LRC 6.2x(Code G)
No load current 42.5/21.3 A
Rated torque 118 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 5.69 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
