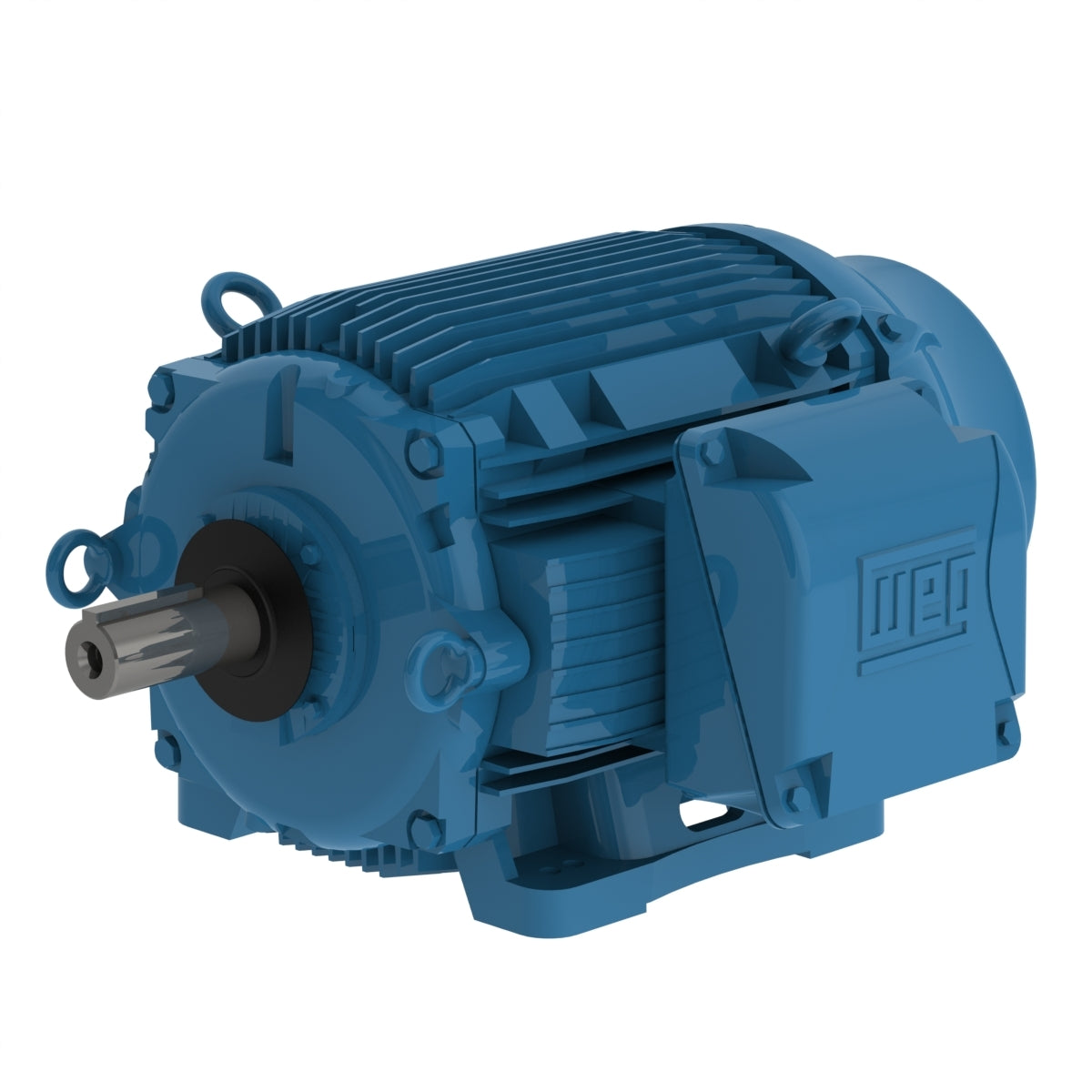

Weg Electric 04026EP3QCT365V-W22, 10 Hp, 600/1200 Rpm, 364/5T Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

04026EP3QCT365V-W22, 10 Hp, 600/1200 Rpm, 364/5T Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 12/6
Degree of Protection IP55
Synchronous speed 600/1200 rpm
Output rating 10/40 HP
Mounting Foot-mounted
Flange Without
Mounting F-2
Terminal box¹ Right position
Enclosure IC411 - TEFC

Frame 364/5T
Output 10 HP (7.5 kW)
Number of Poles 12/6
Frequency 60 Hz
Rated speed 585 rpm
Slip 2.50 %
Rated voltage 460 V
Rated current 17.4 A
L. R. Amperes 62.6 A
LRC 3.6x(Code E)
No load current 14.0 A
Rated torque 89.8 ft.lb
Locked rotor torque 150 %
Breakdown torque 180 %
Locked rotor time 162s (cold) 90s (hot)
Moment of inertia (J) 29.0 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
