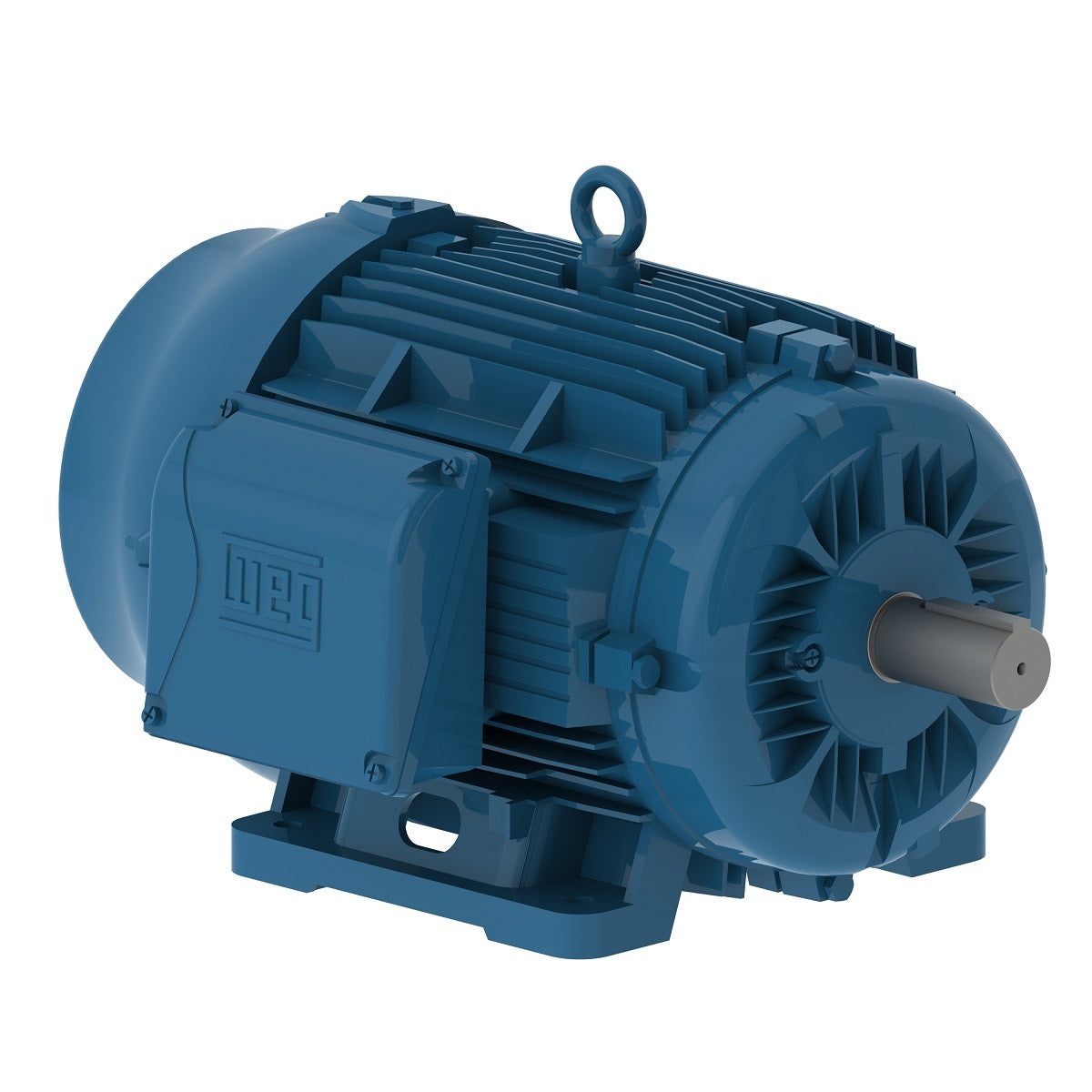

Weg Electric 04030EP3OFP324TS-W22, 40 Hp, 3000 Rpm, 324/5TS Frame, 380-400-415 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

04030EP3OFP324TS-W22, 40 Hp, 3000 Rpm, 324/5TS Frame, 380-400-415 Vac, TEFC, 3 PH, Foot-mounted, W22 High Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 50 Hz
Voltage 380-400-415 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3000 rpm
Output rating 40 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 324/6TS
Output 40 HP (30 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 380 V
Rated current 50.3 A
L. R. Amperes 292 A
LRC 5.8x(Code E)
No load current 13.9 A
Rated torque 71.0 ft.lb
Locked rotor torque 200 %
Breakdown torque 215 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 4.24 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
