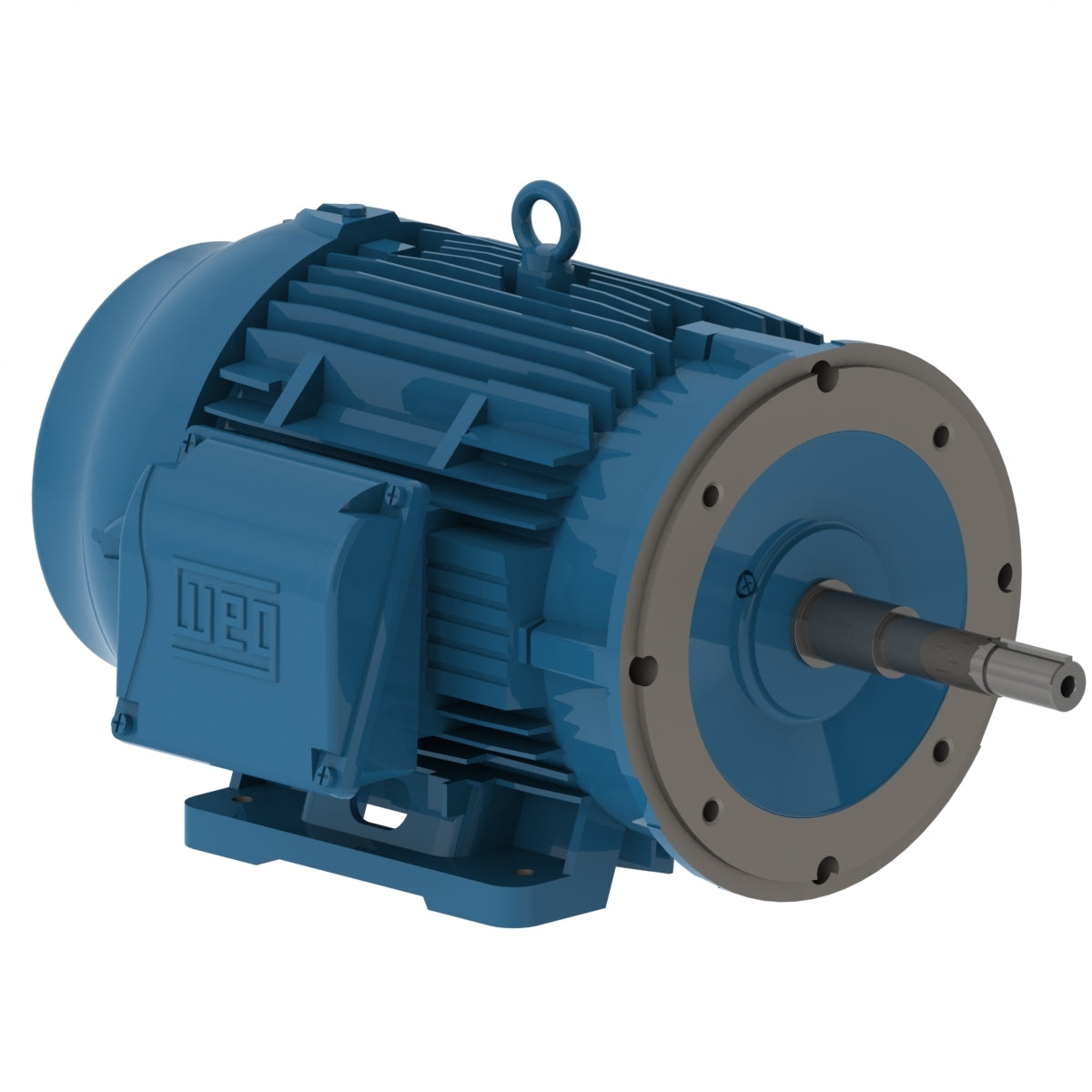

Weg Electric 04036ET3E286JM-W22, 40 Hp, 3600 Rpm, 284/6JM Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Closed Coupled Pump JM NEMA Premium Efficiency.

04036ET3E286JM-W22, 40 Hp, 3600 Rpm, 284/6JM Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Closed Coupled Pump JM NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 40 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 284/6JM
Output 40 HP (30 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3550 rpm
Slip 1.39 %
Rated voltage 208-230/460 V
Rated current 101-91.6/45.8 A
L. R. Amperes 798-724/362 A
LRC 7.9x(Code J)
No load current 24.9-27.0/13.5 A
Rated torque 59.2 ft.lb
Locked rotor torque 310 %
Breakdown torque 320 %
Locked rotor time 18s (cold) 10s (hot)
Design A
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 72.0 dB(A)
