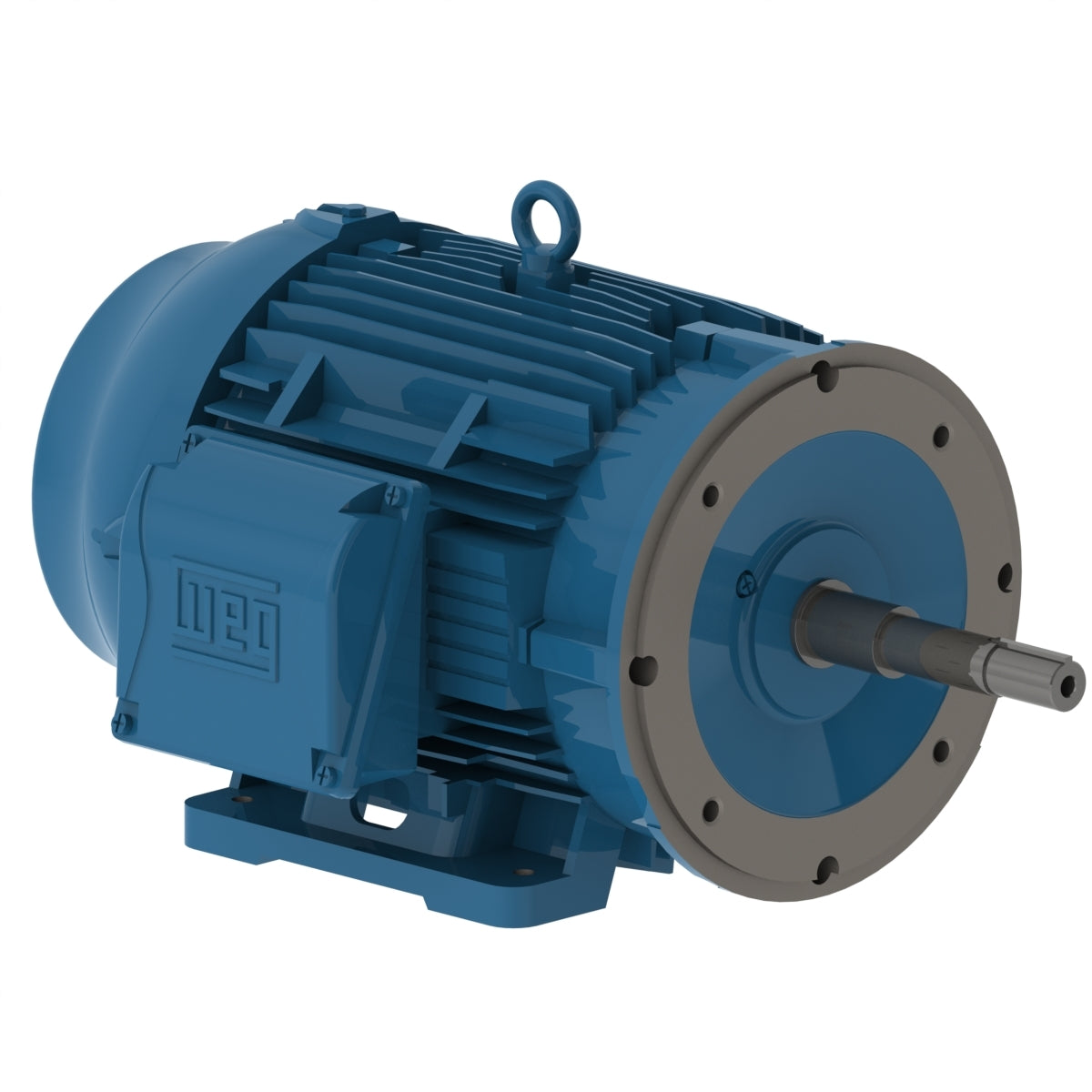

Weg Electric 04036ET3E324JP-W22, 40 Hp, 3600 Rpm, 324/6JP Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Closed Coupled Pump JP NEMA Premium Efficiency.

04036ET3E324JP-W22, 40 Hp, 3600 Rpm, 324/6JP Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Closed Coupled Pump JP NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 40 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 324/6JP
Output 40 HP (30 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 92.6/46.3 A
L. R. Amperes 583/292 A
LRC 6.3x(Code G)
No load current 26.0/13.0 A
Rated torque 59.0 ft.lb
Locked rotor torque 250 %
Breakdown torque 240 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 4.90 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
