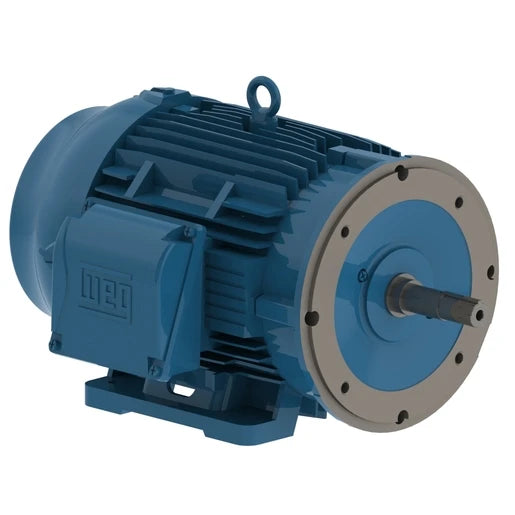

Weg Electric 04036ET3H324JP-W22, 40 Hp, 3600 Rpm, 324/6JP Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, W22 Close Coupled Pump JP NEM, 12712279.

Weg Electric 04036ET3H324JP-W22, 40 Hp, 3600 Rpm, 324/6JP Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, W22 Close Coupled Pump JP NEM, 12712279.

$5,008.92
$5,008.92
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric  04036ET3H324JP-W22, 40 Hp, 3600 Rpm, 324/6JP Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, W22 Close Coupled Pump JP NEM,  12712279.

SPECIFICATIONS

Frame 324/6JP
Output 40 HP (30 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 575 V
Rated current 37.9 A
L. R. Amperes 239 A
LRC 6.3x(Code G)
No load current 10.8 A
Rated torque 59.0 ft.lb
Locked rotor torque 229 %
Breakdown torque 240 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 4.90 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
Approx. weight³ 547 lb
