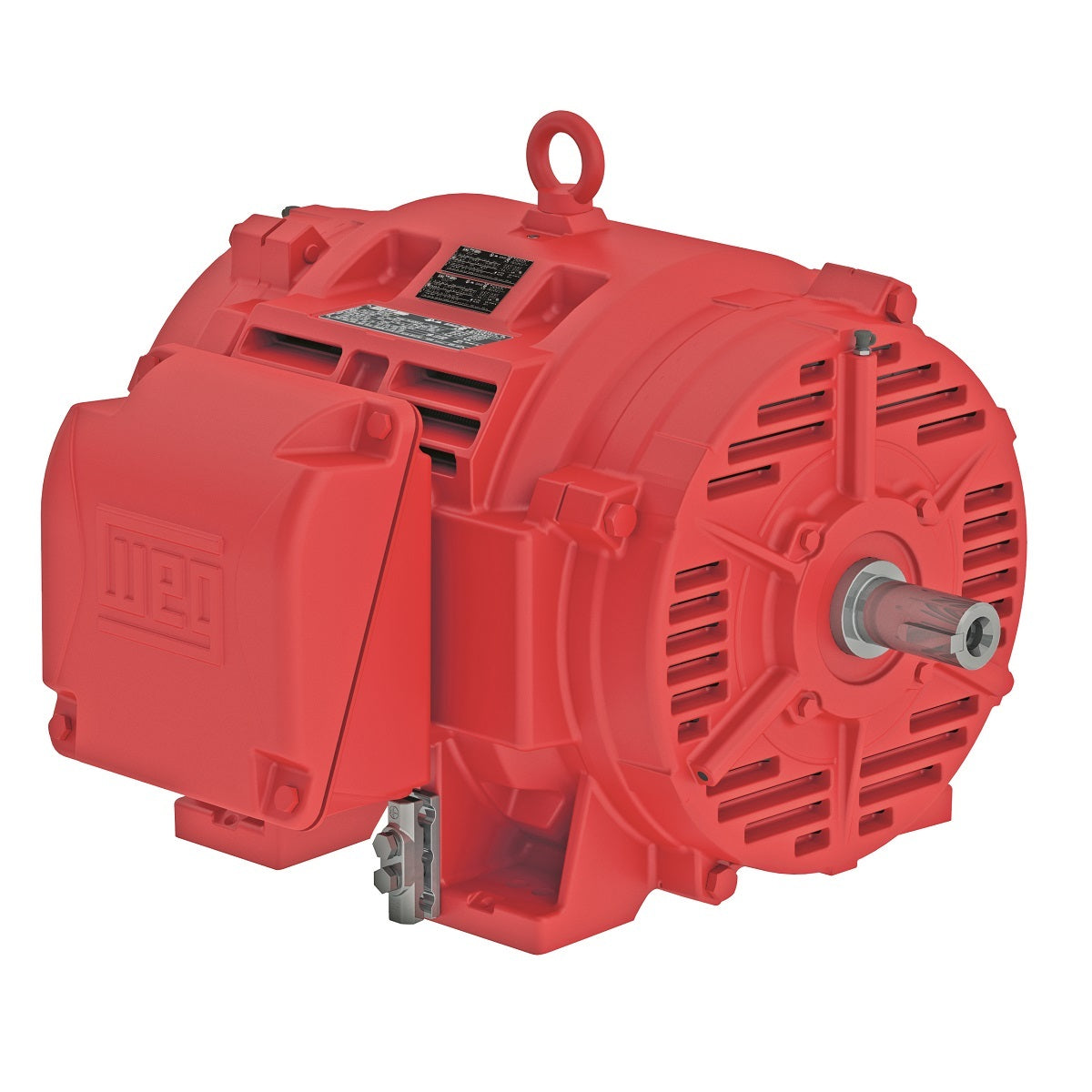

Weg Electric 04036OP3VFP286TS-W40, 40 Hp, 3600 Rpm, 284/6TS Frame, 200/400 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

04036OP3VFP286TS-W40, 40 Hp, 3600 Rpm, 284/6TS Frame, 200/400 Vac, ODP, 3 PH, Foot-mounted, W40 High Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 40 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 284/6TS
Output 40 HP (30 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3545 rpm
Slip 1.53 %
Rated voltage 200/400 V
Rated current 109/54.3 A
L. R. Amperes 662/331 A
LRC 6.1x(Code G)
No load current 36.8/18.4 A
Rated torque 59.3 ft.lb
Locked rotor torque 170 %
Breakdown torque 250 %
Locked rotor time 18s (cold) 10s (hot)
Moment of inertia (J) 1.91 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
