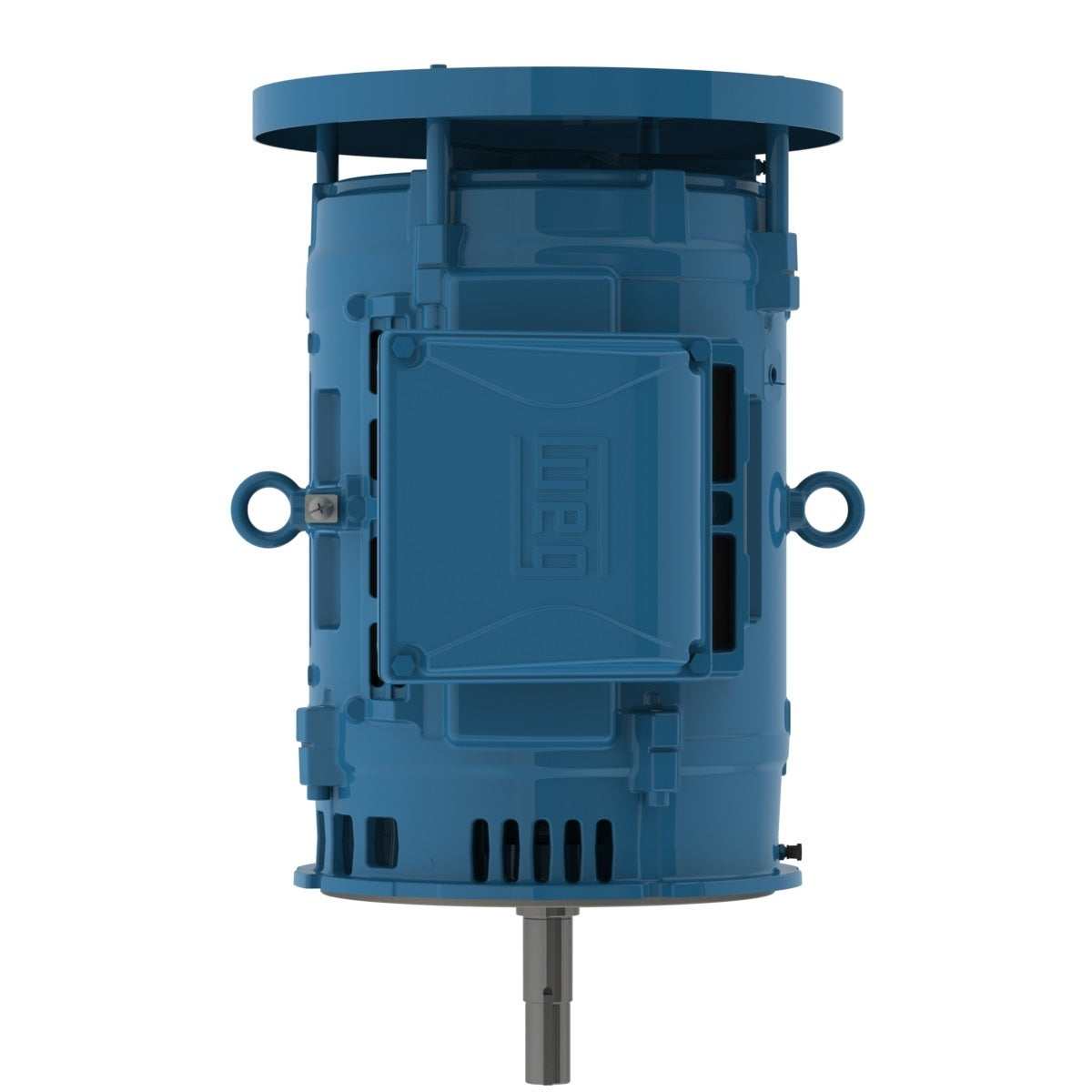

Weg Electric 04036OT3E286JPV-W40, 40 Hp, 3600 Rpm, 284/6JP Frame, 230/460//380 Vac, ODP, 3 PH, Footless, W40 JP Pump NEMA Premium Efficiency.

04036OT3E286JPV-W40, 40 Hp, 3600 Rpm, 284/6JP Frame, 230/460//380 Vac, ODP, 3 PH, Footless, W40 JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 40 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 284/6JP
Output 40 HP (30 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3545 rpm
Slip 1.53 %
Rated voltage 230/460 V
Rated current 93.6/46.8 A
L. R. Amperes 608/304 A
LRC 6.5x(Code G)
No load current 29.8/14.9 A
Rated torque 59.3 ft.lb
Locked rotor torque 190 %
Breakdown torque 260 %
Locked rotor time 14s (cold) 8s (hot)
Moment of inertia (J) 2.02 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 73.0 dB(A)
