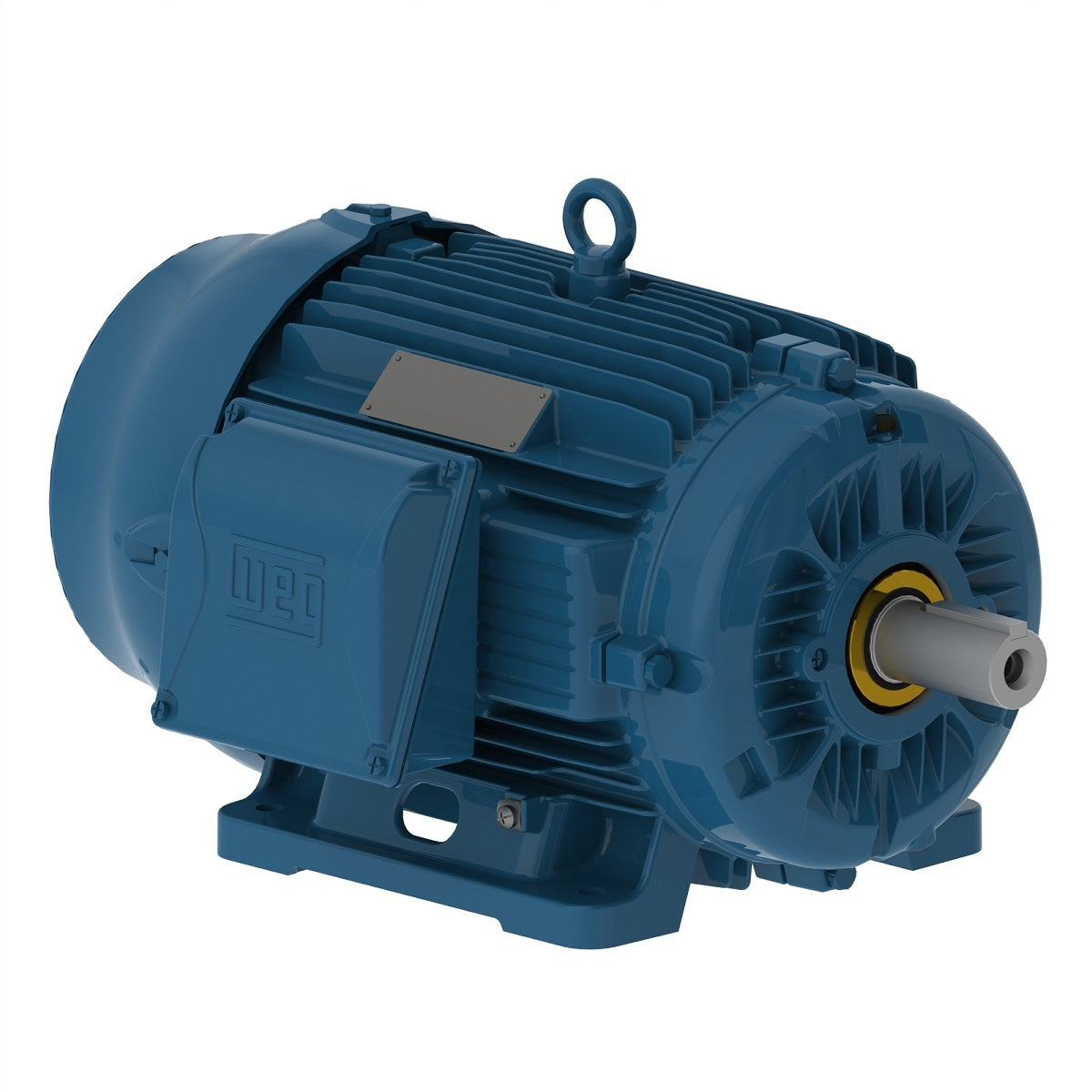

Weg Electric 04036ST3QIE324TSC-W2, 40 Hp, 3600 Rpm, 324/6TSC Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 IEEE 841 NEMA Premium Efficiency.

04036ST3QIE324TSC-W2, 40 Hp, 3600 Rpm, 324/6TSC Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 IEEE 841 NEMA Premium Efficiency.

Engineering Data

The W22 IEEE 841 motors were especially designed to operate in petrochemical and chemical industries. The motor has cast iron frame, flexible mounting, solid and whole feet, low noise levels, anticorrosive internal coating and high efficiency.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 40 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 324/6TSC
Output 40 HP (30 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 460 V
Rated current 46.3 A
L. R. Amperes 292 A
LRC 6.3x(Code G)
No load current 11.0 A
Rated torque 59.1 ft.lb
Locked rotor torque 250 %
Breakdown torque 240 %
Locked rotor time 39s (cold) 22s (hot)
Moment of inertia (J) 4.90 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 76.0 dB(A)
