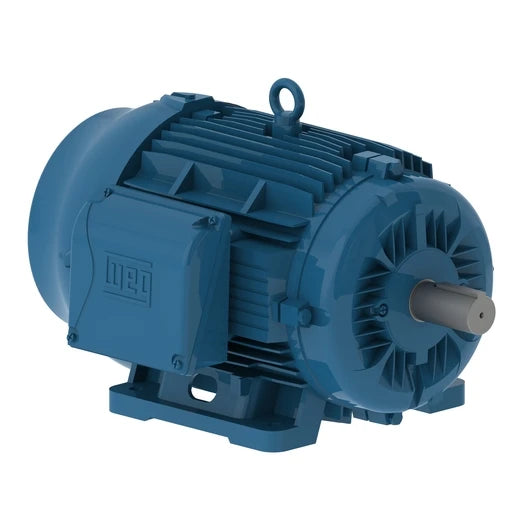

Weg Electric 05012ET3V365T-W22, 50 Hp, 1200 Rpm, 364/5T Frame, 200-208/400 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 17612220

Weg Electric 05012ET3V365T-W22, 50 Hp, 1200 Rpm, 364/5T Frame, 200-208/400 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 17612220

$7,581.02
$7,581.02
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 05012ET3V365T-W22, 50 Hp, 1200 Rpm, 364/5T Frame, 200-208/400 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 17612220

SPECIFICATIONS

Frame 364/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1183 rpm
Slip 1.42 %
Rated voltage 200-208/400 V
Rated current 132-127/66.0 A
L. R. Amperes 845-812/422 A
LRC 6.4x(Code G)
No load current 46.0-34.5/23.0 A
Rated torque 222 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 32.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 869 lb
