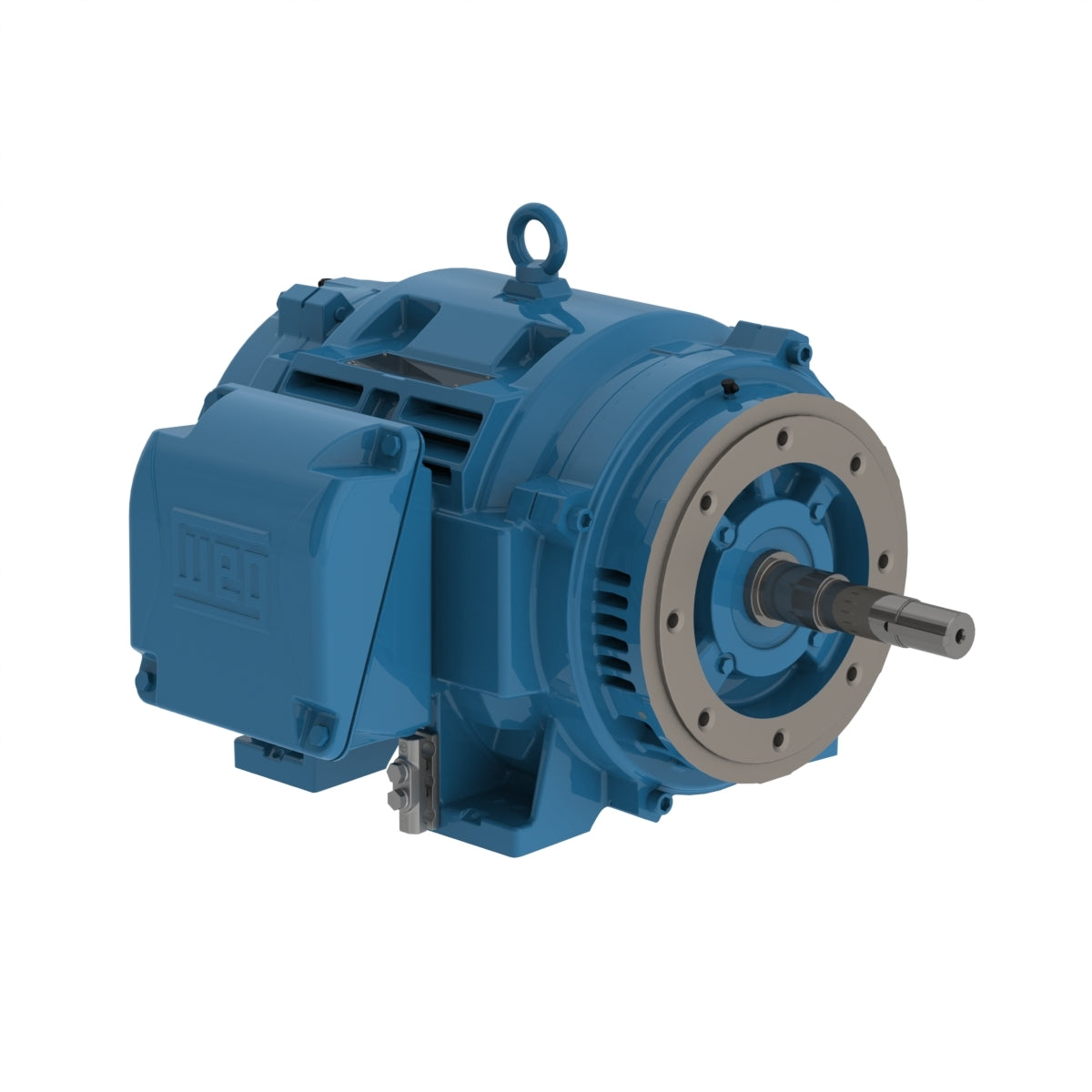

Weg Electric 05012OT3E365JM, 50 Hp, 1200 Rpm, 364/5JM Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 JM Pump NEMA Premium Efficiency.

05012OT3E365JM, 50 Hp, 1200 Rpm, 364/5JM Frame, 230/460//380 Vac, ODP, 3 PH, Foot-mounted, W40 JM Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 6
Degree of Protection IP23
Synchronous speed 1200 rpm
Output rating 50 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 364/5JM
Output 50 HP (37 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 116/58.1 A
L. R. Amperes 779/389 A
LRC 6.7x(Code G)
No load current 40.8/20.4 A
Rated torque 222 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 23.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
