Industrial Motors

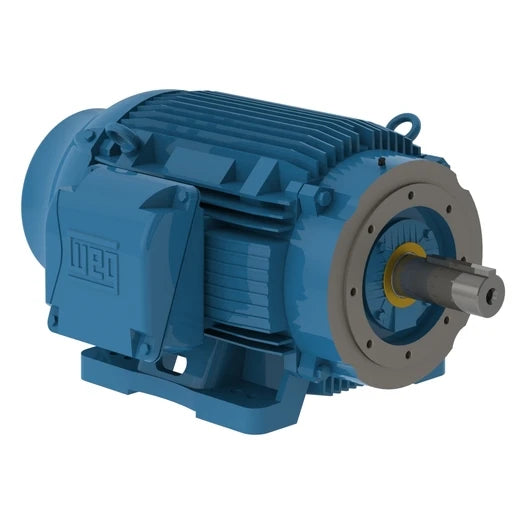

Weg Electric 05012ST3QIE365TC-W22, 50 Hp, 1200 Rpm, 364/5TC Frame, 460 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 14275000

Weg Electric 05012ST3QIE365TC-W22, 50 Hp, 1200 Rpm, 364/5TC Frame, 460 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 14275000

$8,672.16
$8,672.16
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 05012ST3QIE365TC-W22, 50 Hp, 1200 Rpm, 364/5TC Frame, 460 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 14275000

SPECIFICATIONS

Manufacturer Part Number 05012ST3QIE365TC-W22
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description 50HP 1200 3 60 460V, J2
Type Severe Duty
Horsepower 50 hp
Speed 1,200 RPM
RPM 1,200 RPM
Phase 3
Frequency 60 Hz
NEMA Frame 364/5TC
AC Voltage 460 VAC
Nominal Voltage 415 VAC, 480 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 57.4 A
Service Factor 1.25
Composition Cast Iron
Net Weight 1032.86 lbs
Gross Weight 1032.86 lbs
View full details

Attachments
