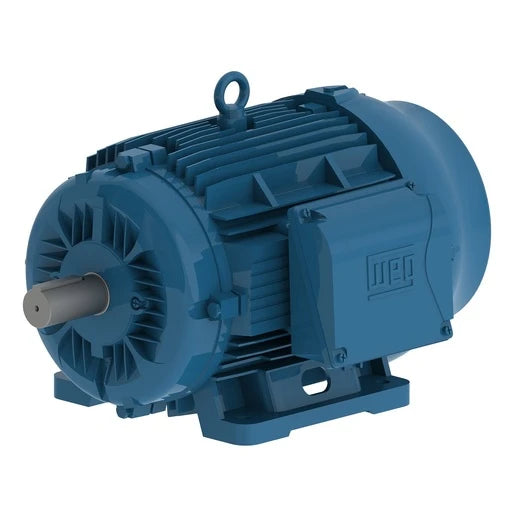

Weg Electric 05018ET3E326TF2-W22, 50 Hp, 1800 Rpm, 324/6T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 11699536

Weg Electric 05018ET3E326TF2-W22, 50 Hp, 1800 Rpm, 324/6T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 11699536

$4,539.00
$4,539.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 05018ET3E326TF2-W22, 50 Hp, 1800 Rpm, 324/6T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 11699536

SPECIFICATIONS



Frame 324/6T
Output 50 HP (37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 230/460 V
Rated current 118/59.2 A
L. R. Amperes 734/367 A
LRC 6.2x(Code G)
No load current 47.0/23.5 A
Rated torque 148 ft.lb
Locked rotor torque 229 %
Breakdown torque 270 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 9.16 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 70.0 dB(A)
Approx. weight³ 596 lb
