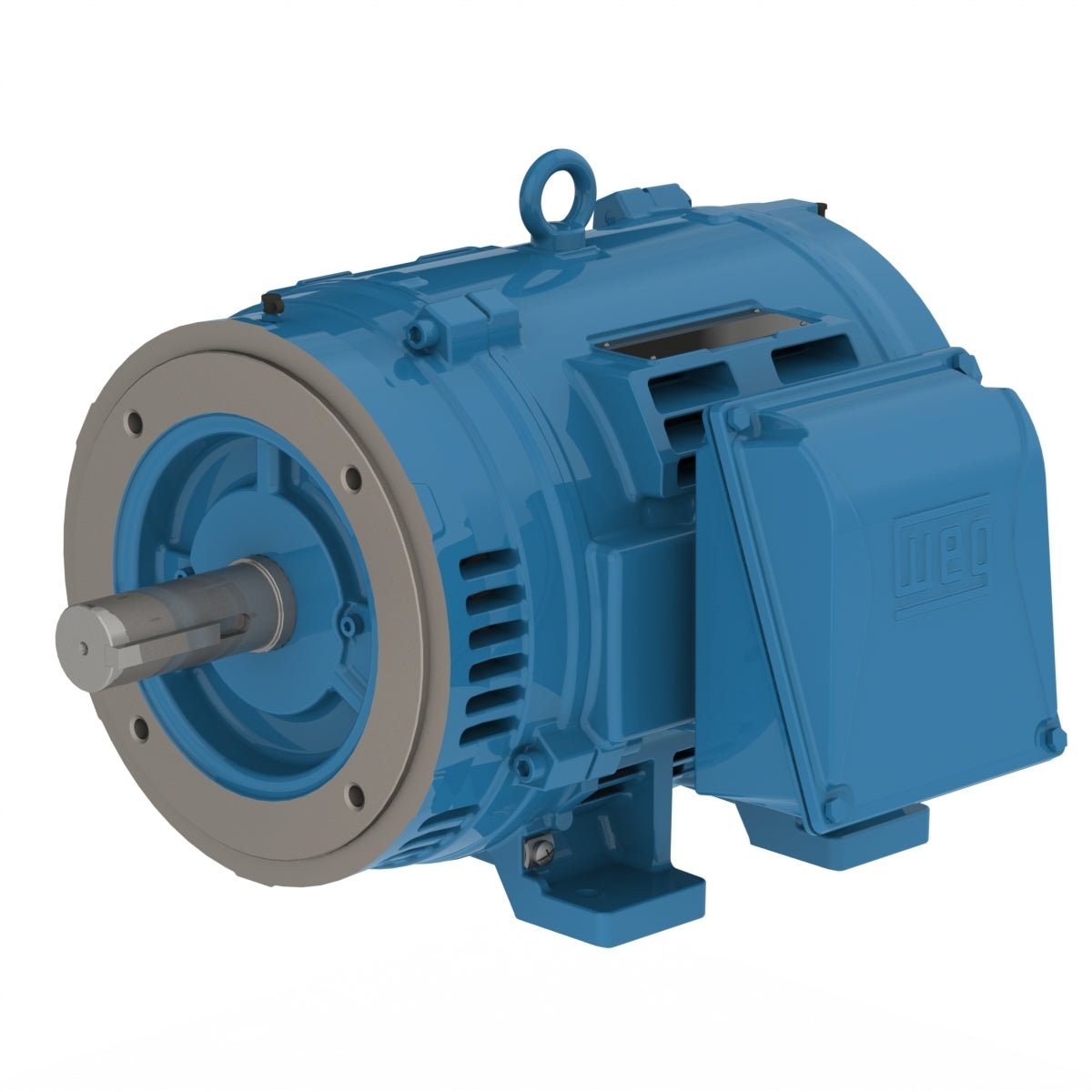

Weg Electric 05018OT3P326TSCF2-W4, 50 Hp, 1800 Rpm, 324/6TSC Frame, 200 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

05018OT3P326TSCF2-W4, 50 Hp, 1800 Rpm, 324/6TSC Frame, 200 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 200 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 50 HP
Mounting Foot-mounted
Flange C
Mounting F-2
Terminal box¹ Right position
Enclosure IC01 - ODP

Frame 324/6TSC
Output 50 HP (37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 200 V
Rated current 135 A
L. R. Amperes 848 A
LRC 6.3x(Code G)
No load current 53.4 A
Rated torque 148 ft.lb
Locked rotor torque 240 %
Breakdown torque 240 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 7.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-2
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
