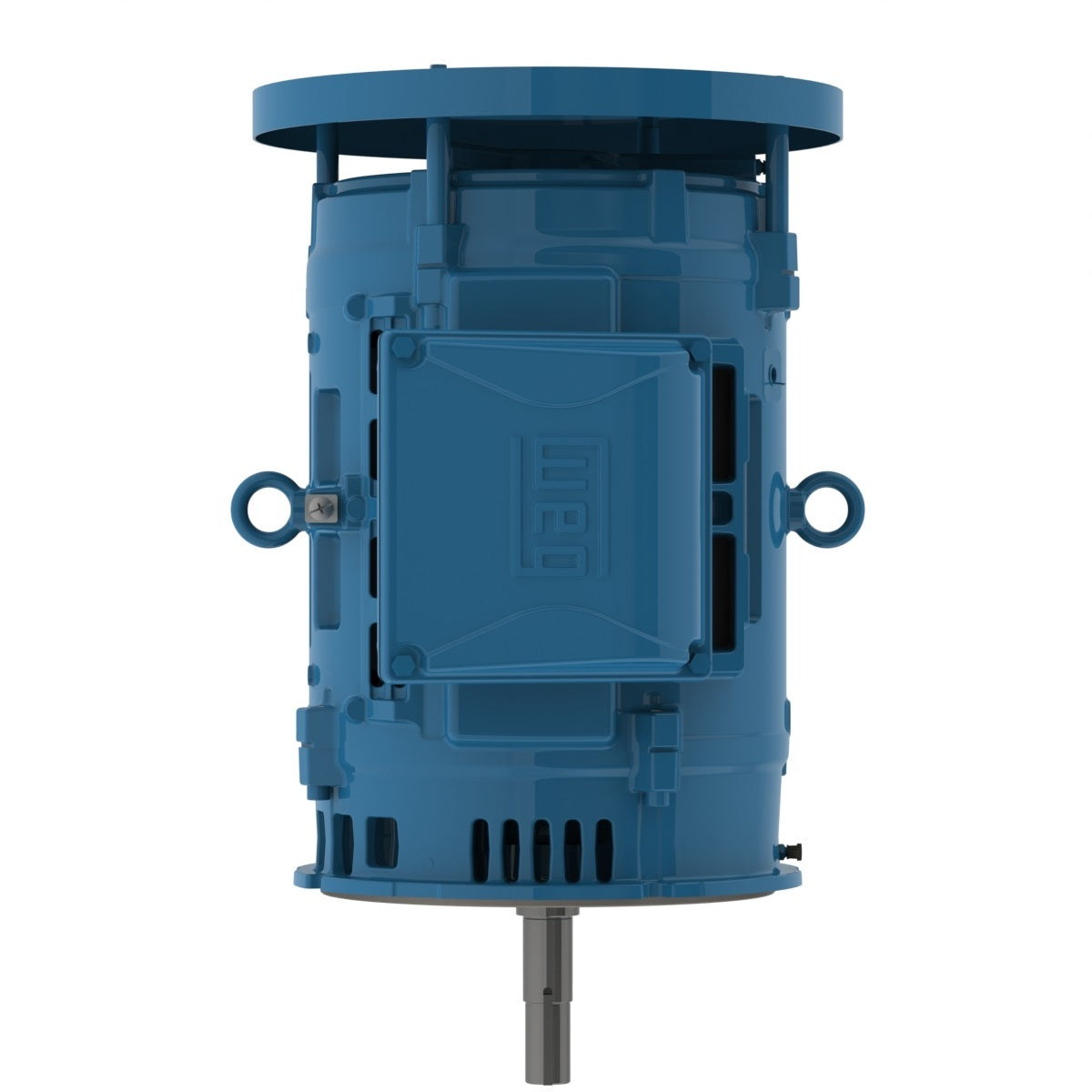

Weg Electric 05018OT3V326JPV-W40, 50 Hp, 324/6JP Frame, 1800 RPM, 200/400 Vac, TEFC, 3 PH, Footless, W40 JP Pump NEMA Premium Efficiency.

05018OT3V326JPV-W40, 50 Hp, 324/6JP Frame, 1800 RPM, 200/400 Vac, TEFC, 3 PH, Footless, W40 JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 50 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 324/6JP
Output 50 HP (37 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1775 rpm
Slip 1.39 %
Rated voltage 200/400 V
Rated current 135/67.3 A
L. R. Amperes 848/424 A
LRC 6.3x(Code G)
No load current 53.4/26.7 A
Rated torque 148 ft.lb
Locked rotor torque 240 %
Breakdown torque 240 %
Locked rotor time 19s (cold) 11s (hot)
Moment of inertia (J) 7.08 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
