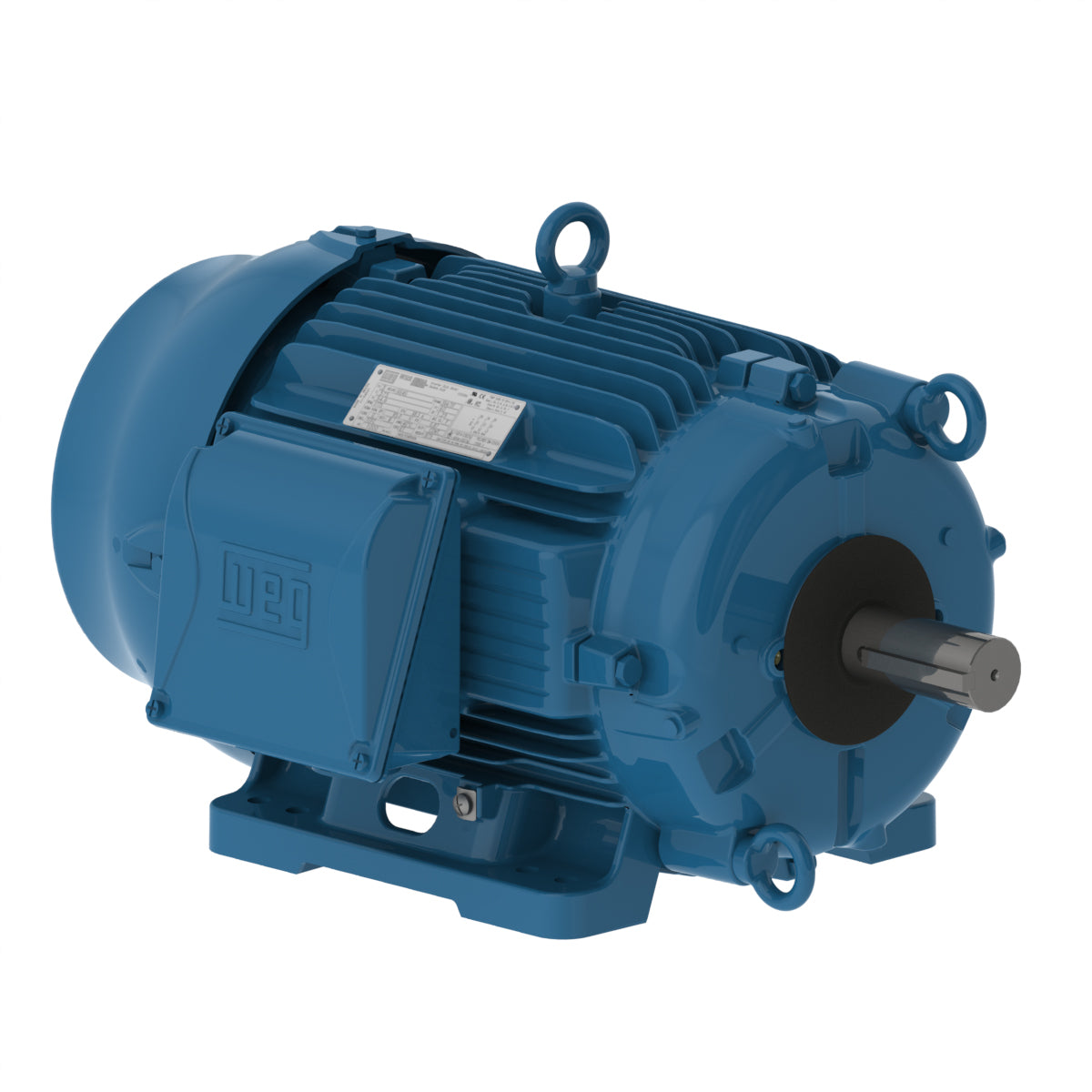

Weg Electric 05026EP3QCT365VF1-W2, 12 1/2 Hp, 600/1200 Rpm, 364/5T Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

05026EP3QCT365VF1-W2, 12 1/2 Hp, 600/1200 Rpm, 364/5T Frame, 460 Vac, TEFC, 3 PH, Foot-mounted, W22 Cooling Tower High Efficiency.

Engineering Data

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 12/6
Degree of Protection IP55
Synchronous speed 600/1200 rpm
Output rating 12.5/50 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 364/5T
Output 12.5 HP (9.2 kW)
Number of Poles 12/6
Frequency 60 Hz
Rated speed 590 rpm
Slip 1.67 %
Rated voltage 460 V
Rated current 21.0 A
L. R. Amperes 73.5 A
LRC 3.5x(Code E)
No load current 13.0 A
Rated torque 111 ft.lb
Locked rotor torque 130 %
Breakdown torque 180 %
Locked rotor time 162s (cold) 90s (hot)
Moment of inertia (J) 32.4 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
