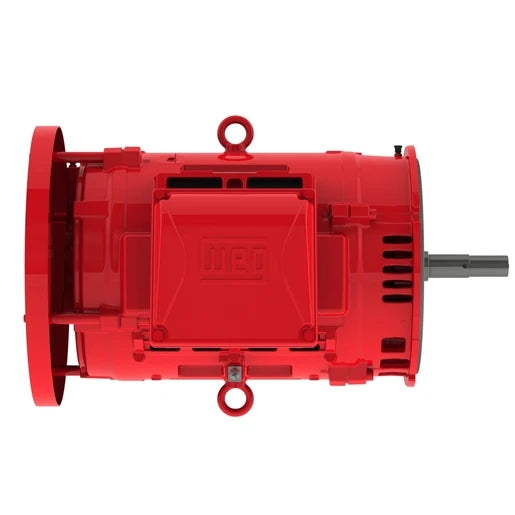

Weg Electric, 05036OT3H324JM-W40, 50 Hp, 3600 Rpm, 324JM Frame, 575 Vac, ODP, 3 PH, Foot-Mounted, W40 JM Pump High Efficiency, 14484970

Weg Electric, 05036OT3H324JM-W40, 50 Hp, 3600 Rpm, 324JM Frame, 575 Vac, ODP, 3 PH, Foot-Mounted, W40 JM Pump High Efficiency, 14484970

$4,100.23
$4,100.23
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric, 05036OT3H324JM-W40, 50 Hp, 3600 Rpm, 324JM Frame, 575 Vac, ODP, 3 PH, Foot-Mounted, W40 JM Pump High Efficiency, 14484970

SPECIFICATIONS


Frame 324JM
Output 50 HP (37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 575 V
Rated current 47.6 A
L. R. Amperes 300 A
LRC 6.3x(Code G)
No load current 17.2 A
Rated torque 73.9 ft.lb
Locked rotor torque 210 %
Breakdown torque 220 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 3.02 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
Approx. weight³ 524 lb
