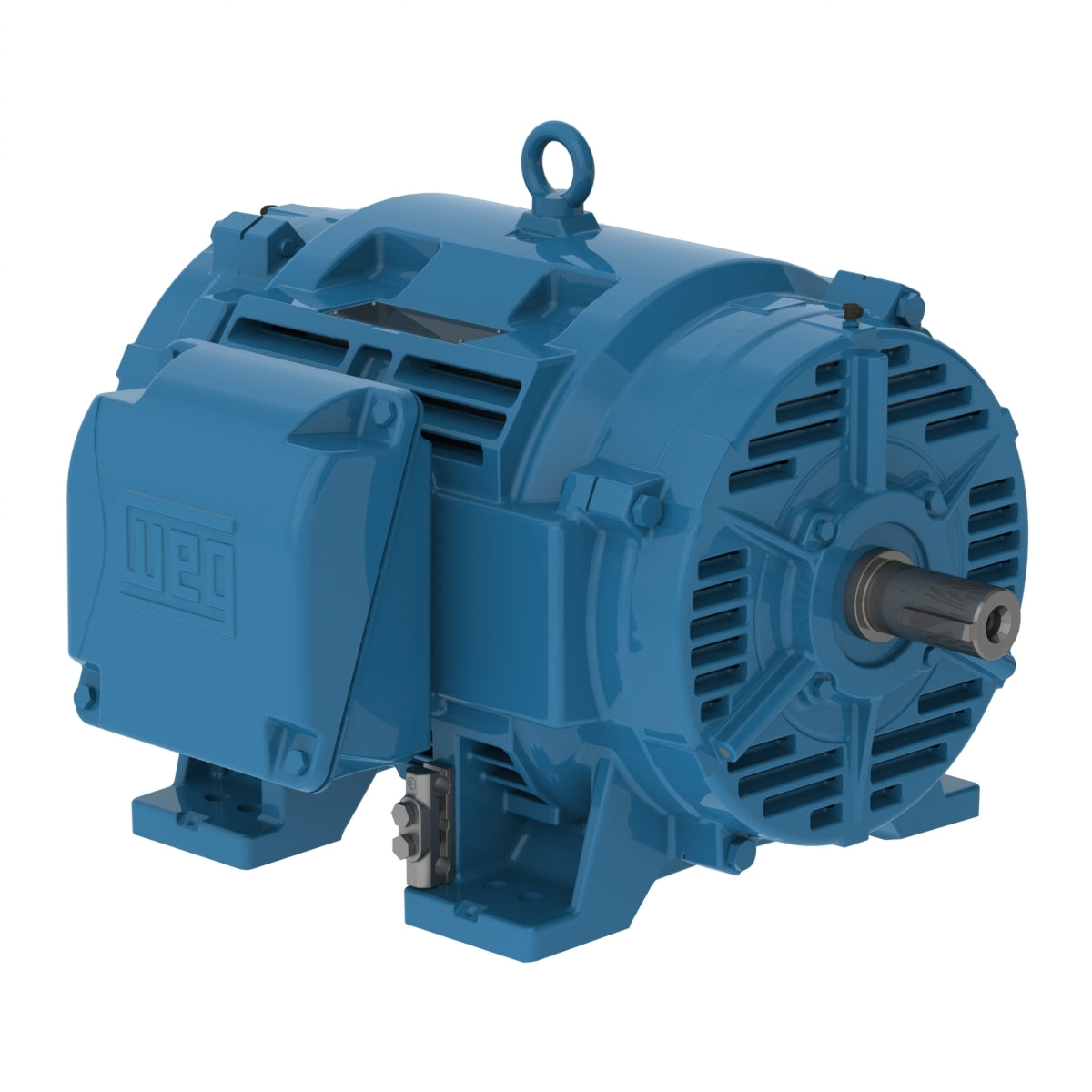

Weg Electric 05036OT3H324TS-W40, 50 Hp, 324TS Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

05036OT3H324TS-W40, 50 Hp, 324TS Frame, 3600 RPM, 575 Vac, ODP, 3 PH, Foot-mounted, W40 NEMA Premium Efficiency.

Engineering Data

The W40 motor is a general purpose line designed for environments where dirt and moisture are minimal. The W40 cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 50 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 324TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 575 V
Rated current 47.5 A
L. R. Amperes 299 A
LRC 6.3x(Code G)
No load current 18.0 A
Rated torque 73.8 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 3.02 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
