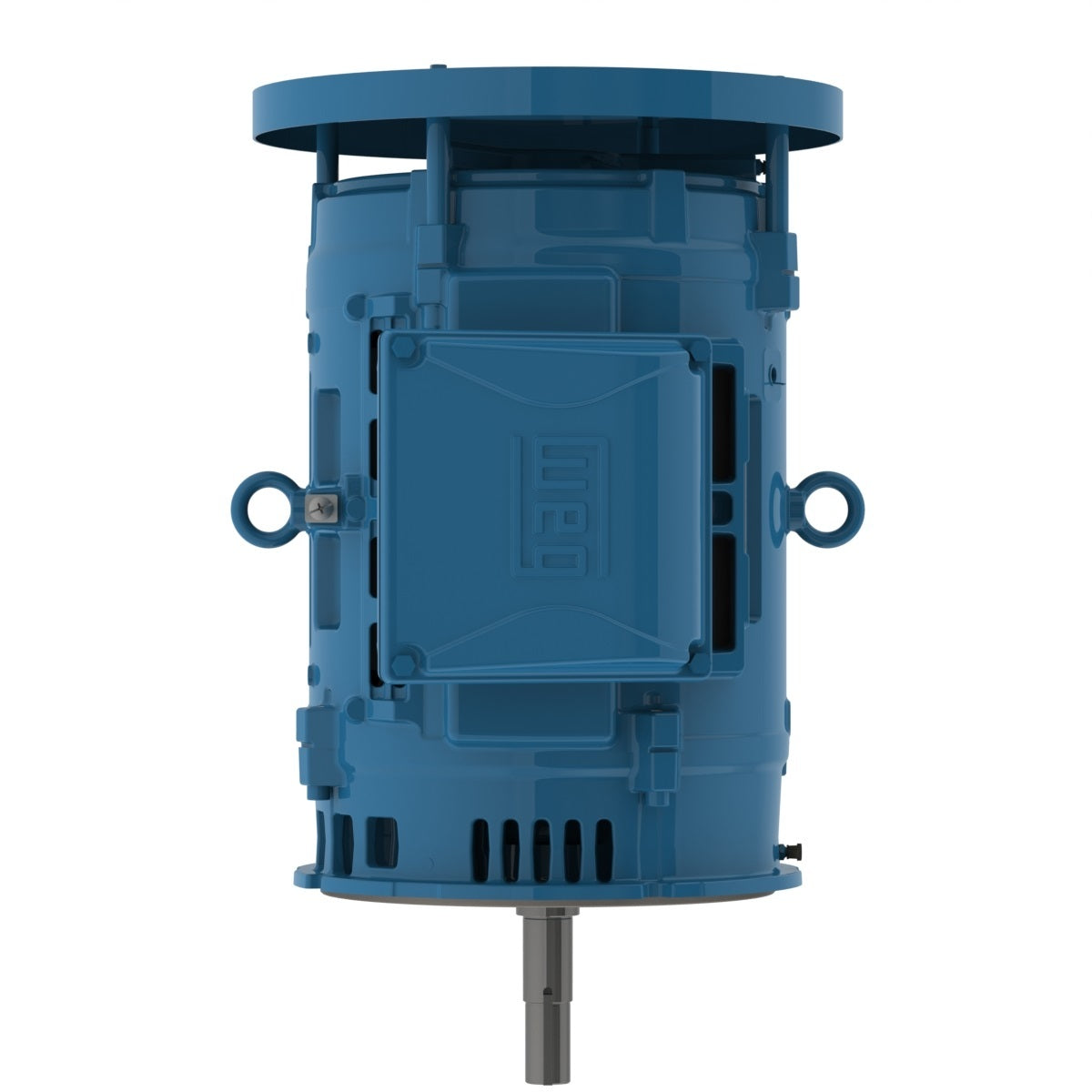

Weg Electric 05036OT3V324JPV-W40, 50 Hp, 3600 Rpm, 324/6JP Frame, 200/400 Vac, TEFC, 3 PH, Footless, W40 JP Pump NEMA Premium Efficiency.

05036OT3V324JPV-W40, 50 Hp, 3600 Rpm, 324/6JP Frame, 200/400 Vac, TEFC, 3 PH, Footless, W40 JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 50 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 324/6JP
Output 50 HP (37 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 200/400 V
Rated current 137/68.3 A
L. R. Amperes 861/430 A
LRC 6.3x(Code G)
No load current 51.7/25.9 A
Rated torque 73.8 ft.lb
Locked rotor torque 200 %
Breakdown torque 220 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 3.02 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
