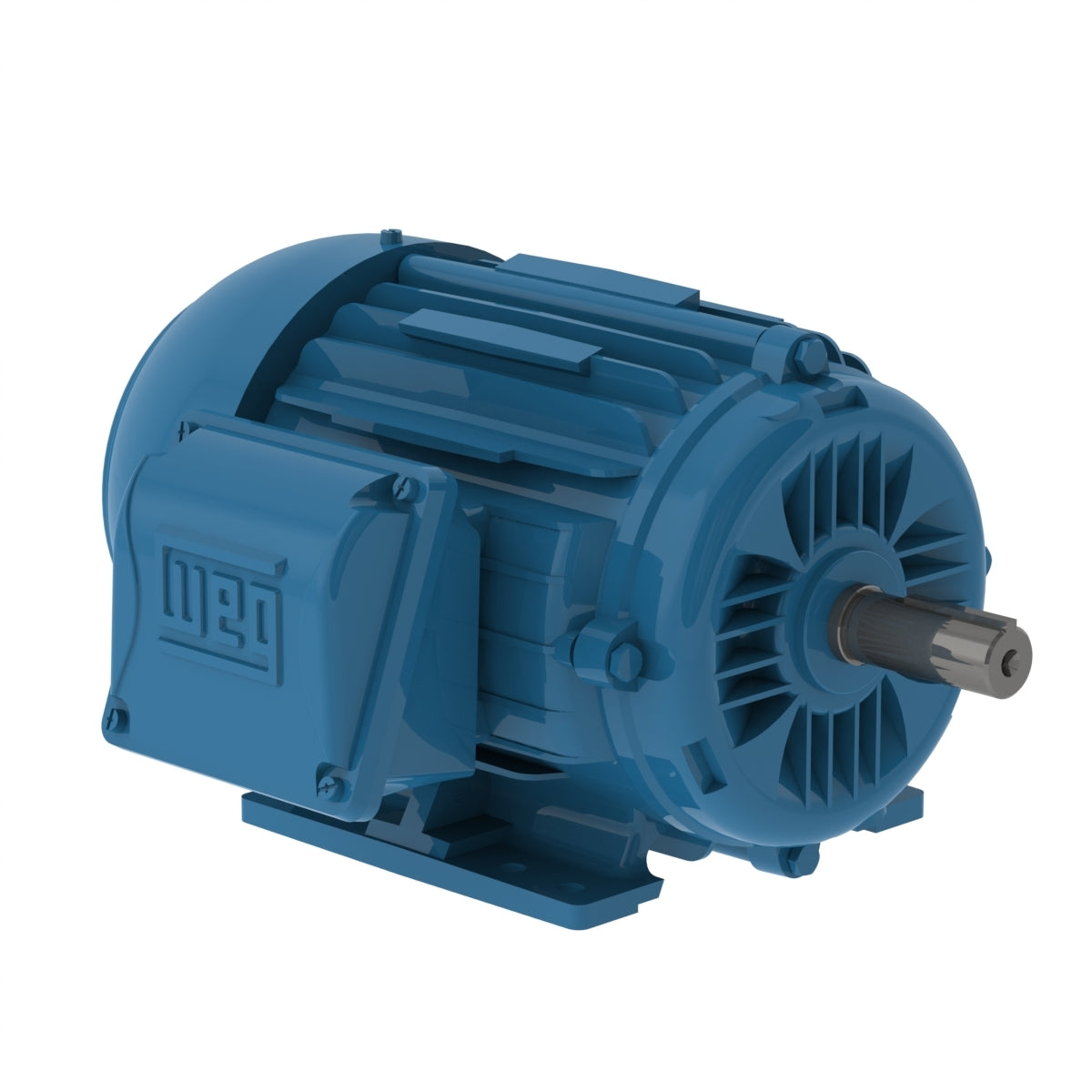

Weg Electric 06009ET3E405T-W22, 60 Hp, 900 Rpm, 404/5T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

06009ET3E405T-W22, 60 Hp, 900 Rpm, 404/5T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 60 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 230/460 V
Rated current 146/73.0 A
L. R. Amperes 949/475 A
LRC 6.5x(Code H)
No load current 60.0/30.0 A
Rated torque 358 ft.lb
Locked rotor torque 180 %
Breakdown torque 270 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 40.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
