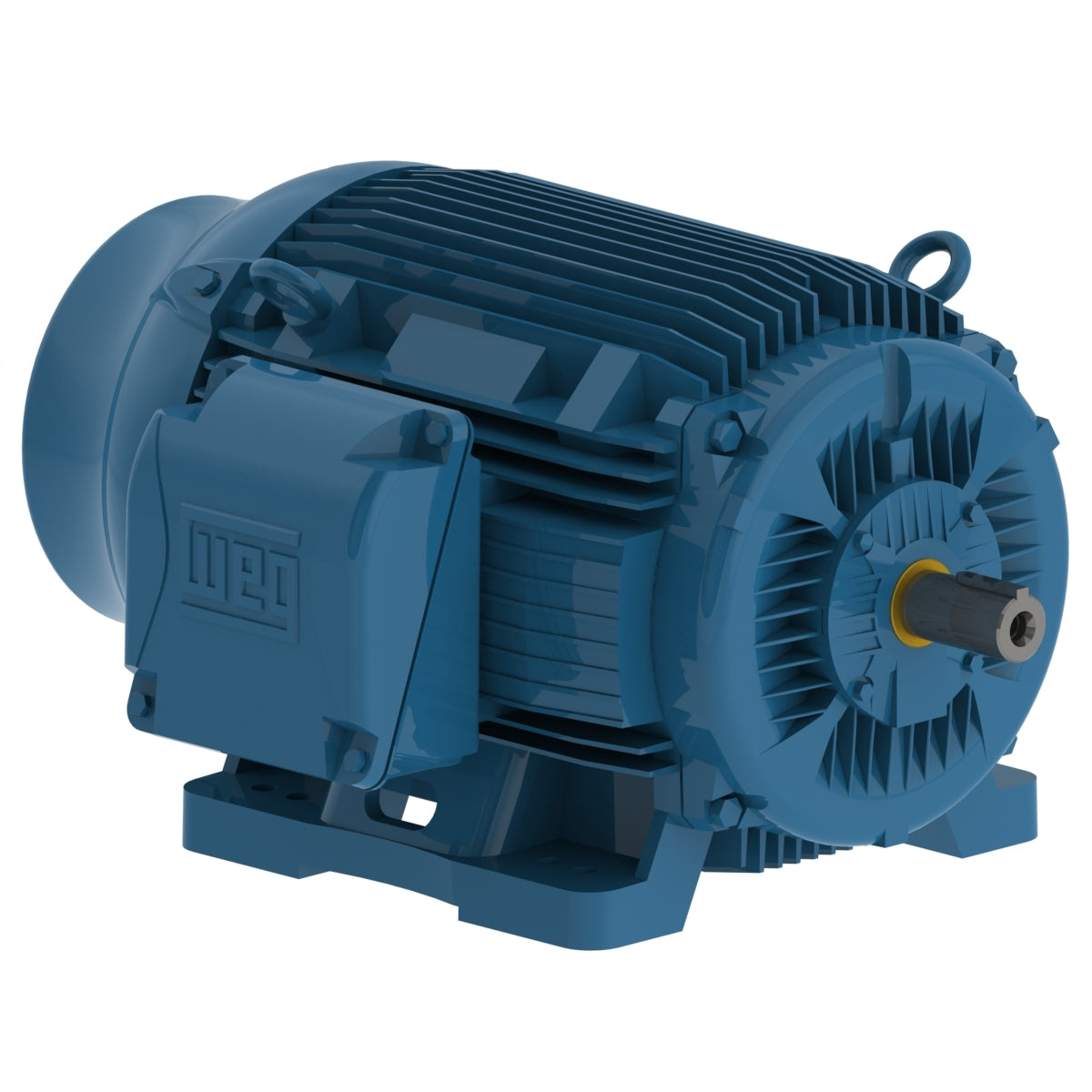

Weg Electric 06009ET3EKD405T-W22, 60 Hp, 404/5T Frame, 900 RPM, 208-230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

06009ET3EKD405T-W22, 60 Hp, 404/5T Frame, 900 RPM, 208-230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency.

Engineering Data

Designed to meet the demanding requirements of the rock crushing industry, the Crusher Duty motor comes standard with 4140 high strength shafts and heavy duty roller bearings. This motor complies or exceeds EISA 2016 requlations. Compliment your WEG Crusher Duty motor with our TPH2 Starter to complete your solution!

Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 60 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 880 rpm
Slip 2.22 %
Rated voltage 208-230/460 V
Rated current 161-146/73.0 A
L. R. Amperes 1047-949/475 A
LRC 6.5x(Code G)
No load current 51.7-60.0/30.0 A
Rated torque 358 ft.lb
Locked rotor torque 180 %
Breakdown torque 270 %
Locked rotor time 23s (cold) 13s (hot)
Design A
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 60.0 dB(A)
