Industrial Motors

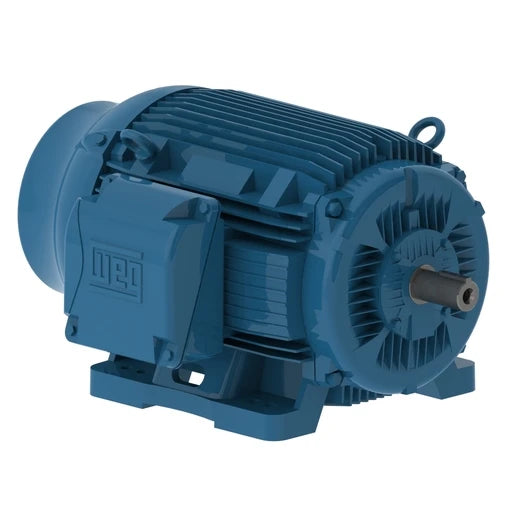

Weg Electric 06009ST3HIE405T-W22, 60 Hp, 900 Rpm, 404/5T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 15459791

Weg Electric 06009ST3HIE405T-W22, 60 Hp, 900 Rpm, 404/5T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 15459791

$20,095.31
$20,095.31
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 06009ST3HIE405T-W22, 60 Hp, 900 Rpm, 404/5T Frame, 575 Vac, TEFC, 3 PH, Foot-Mounted, NEMA Premium Efficiency, 15459791

SPECIFICATIONS

Manufacturer Part Number 06009ST3HIE405T-W22
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 60HP 8P 404/5T WFF2
Type Severe Duty
Horsepower 60 hp
Kilowatts 44.7 kW
Speed 900 RPM
Number of Poles 8
Phase 3
Frequency 60 Hz
NEMA Frame 404/5T
AC Voltage 575 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 58.9 A
Service Factor 1.15
Inverter Duty No
Motor Type Foot Mount
Composition Cast Iron
Shaft Diameter 2.88 "
Overload Protection None
Length 40 "
Approvals cCSAus, cULus
Net Weight 1255.668 lbs
Gross Weight 1255.668 lbs
