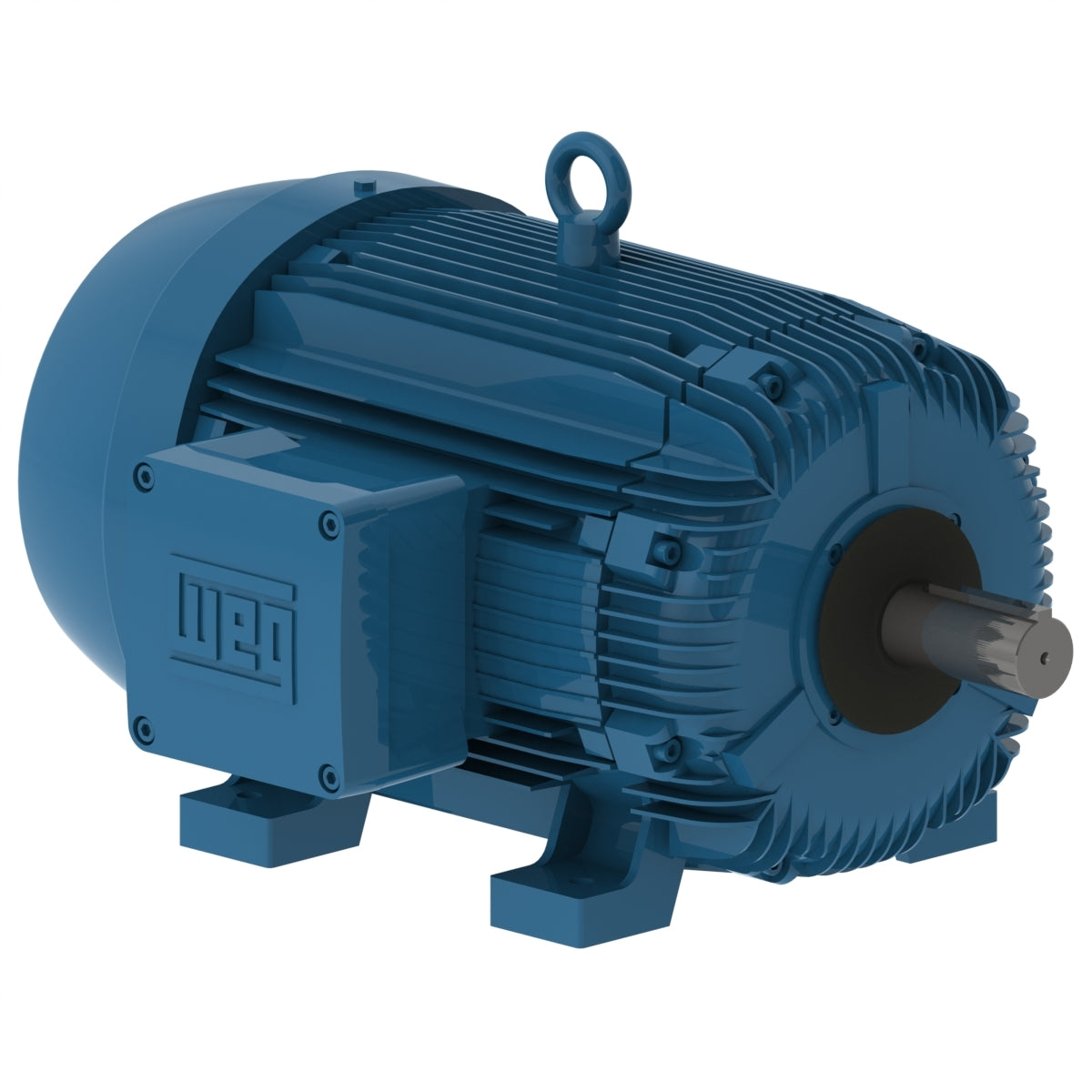

Weg Electric 06009XT3E405T, 60 Hp, 900 Rpm, 404/5T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W21 Explosion-proof Motor NEMA Premium Efficiency.

06009XT3E405T, 60 Hp, 900 Rpm, 404/5T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W21 Explosion-proof Motor NEMA Premium Efficiency.

Engineering Data

WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.
Product features
Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 8
Degree of Protection IP55
Synchronous speed 900 rpm
Output rating 60 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 404/5T
Output 60 HP (45 kW)
Number of Poles 8
Frequency 60 Hz
Rated speed 885 rpm
Slip 1.67 %
Rated voltage 230/460 V
Rated current 152/75.9 A
L. R. Amperes 941/471 A
LRC 6.2x(Code G)
No load current 68.0/34.0 A
Rated torque 356 ft.lb
Locked rotor torque 180 %
Breakdown torque 220 %
Locked rotor time 45s (cold) 25s (hot)
Moment of inertia (J) 38.3 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 62.0 dB(A)
