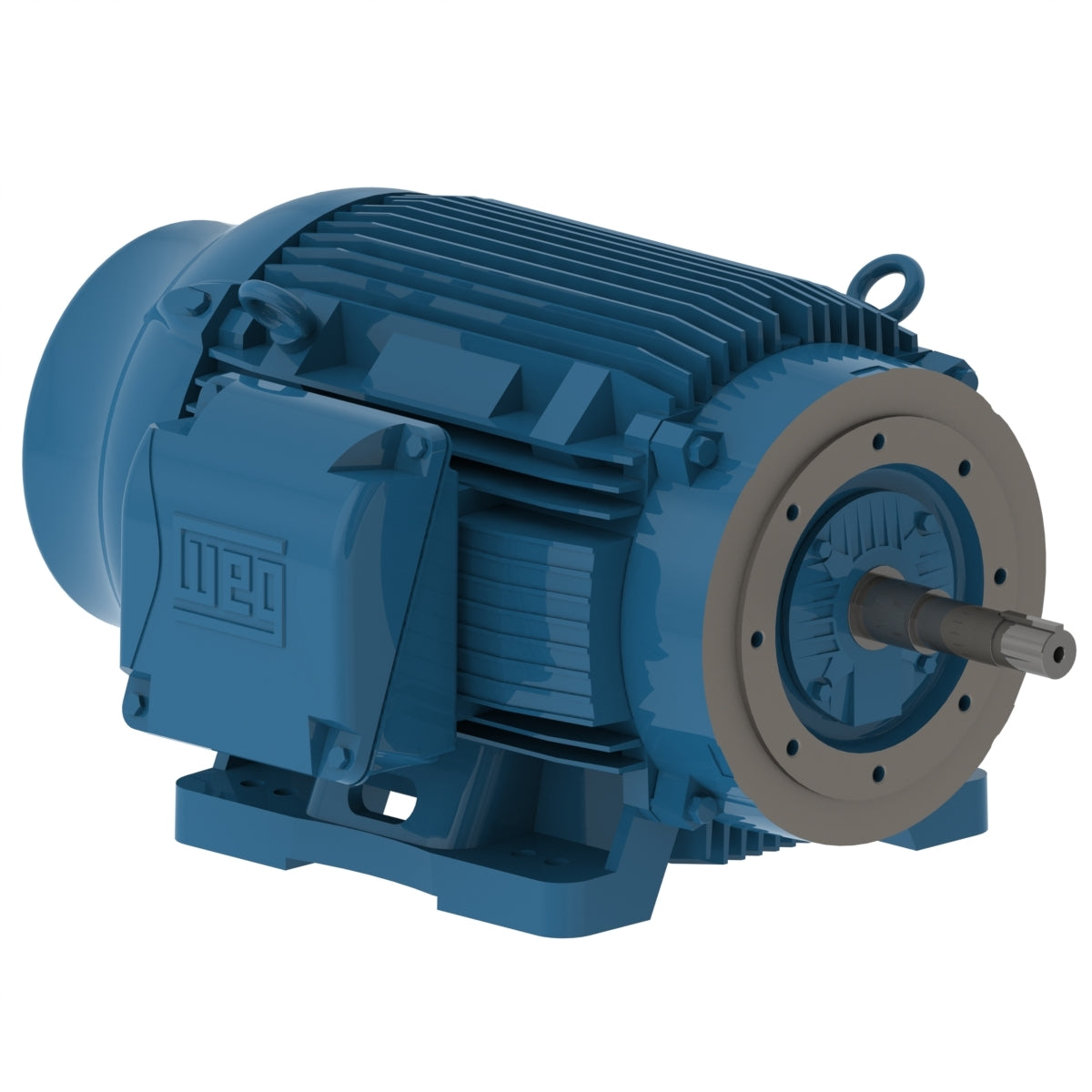

Weg Electric 06012ET3E404JP-W22, 60 Hp, 1200 Rpm, 404/5TJP Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Close Coupled Pump JP NEMA Premium Efficiency.

06012ET3E404JP-W22, 60 Hp, 1200 Rpm, 404/5TJP Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 Close Coupled Pump JP NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 60 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 404/5JP
Output 60 HP (45 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 139/69.5 A
L. R. Amperes 987/493 A
LRC 7.1x(Code H)
No load current 50.0/25.0 A
Rated torque 266 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 36s (cold) 20s (hot)
Moment of inertia (J) 36.9 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
