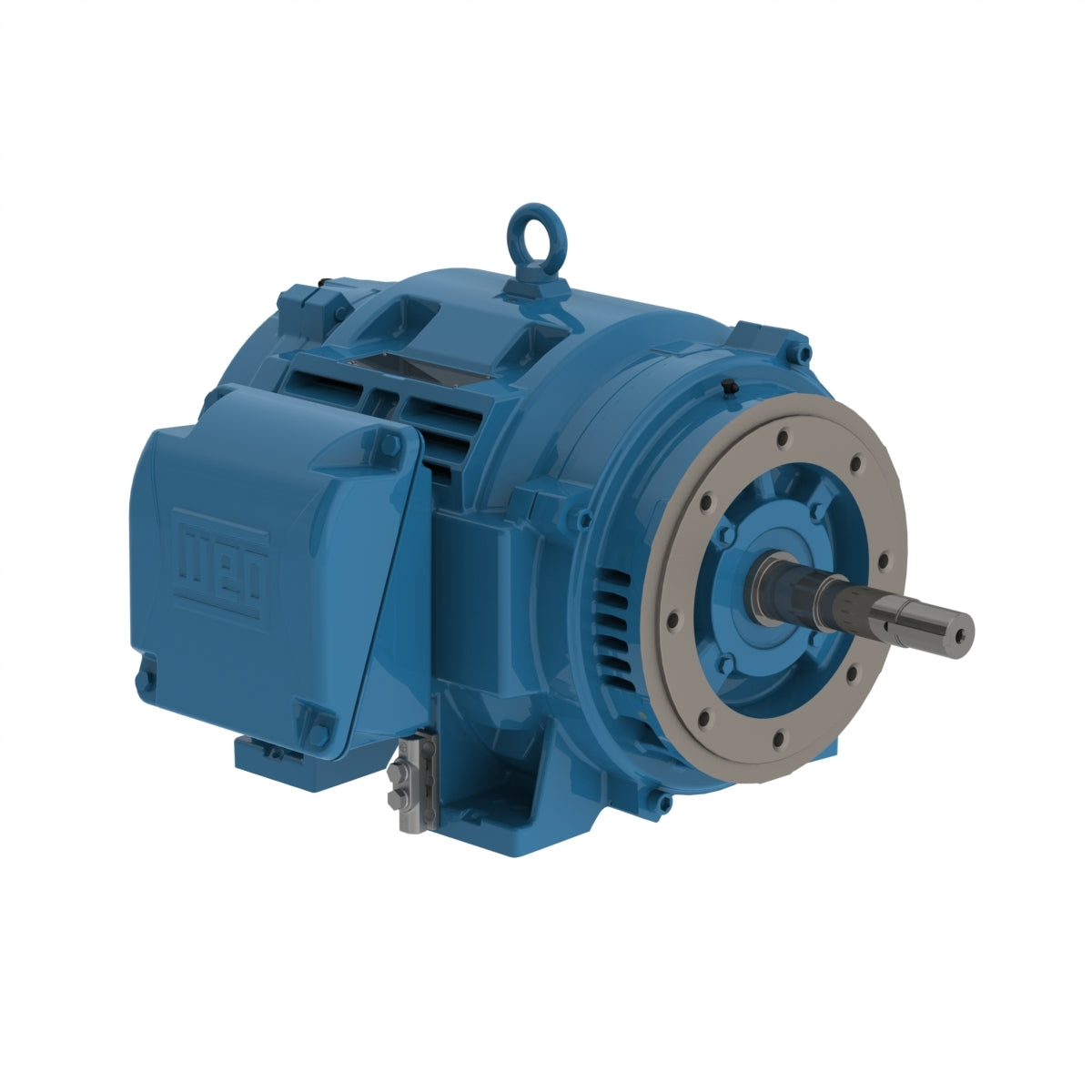

Weg Electric 06012OT3E404JP-W40, 60 Hp, 1200 Rpm, 404/5JP Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W40 JP Pump NEMA Premium Efficiency.

06012OT3E404JP-W40, 60 Hp, 1200 Rpm, 404/5JP Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W40 JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 230/460//380 V
Number of poles 6
Degree of Protection IP23
Synchronous speed 1200 rpm
Output rating 60 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 404/5JP
Output 60 HP (45 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 141/70.3 A
L. R. Amperes 942/471 A
LRC 6.7x(Code G)
No load current 50.0/25.0 A
Rated torque 266 ft.lb
Locked rotor torque 240 %
Breakdown torque 250 %
Locked rotor time 28s (cold) 16s (hot)
Moment of inertia (J) 29.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
