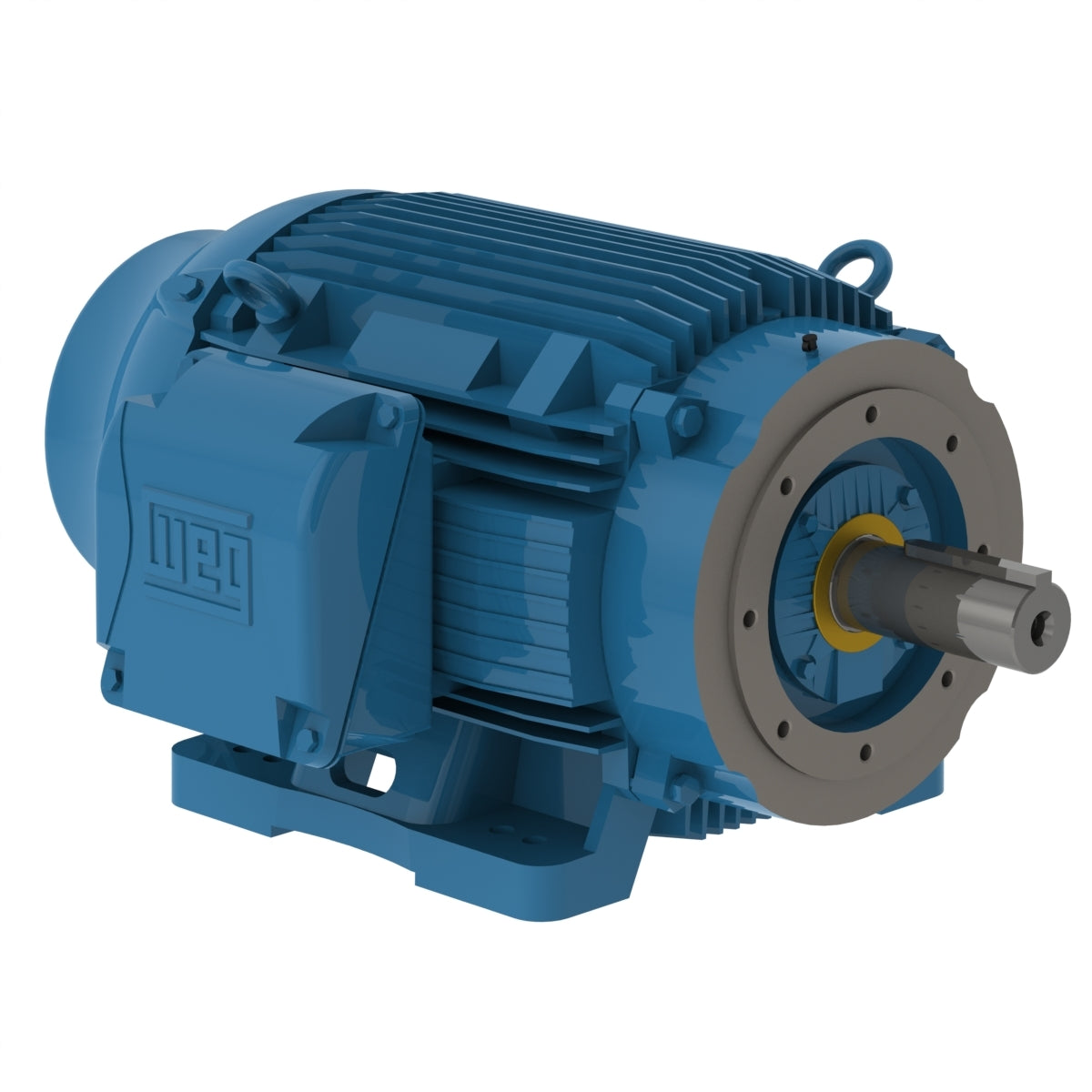

Weg Electric 06012ST3HIE404TC-W22, 60 Hp, 1200 Rpm, 404/5TC Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 IEEE 841 NEMA Premium Efficiency.

06012ST3HIE404TC-W22, 60 Hp, 1200 Rpm, 404/5TC Frame, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 IEEE 841 NEMA Premium Efficiency.

Engineering Data

The W22 IEEE841 motors are designed for the petrochemical and chemical industries. They have rugged construction and long service life, for the most demanding industrial applications.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 575 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 60 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC
