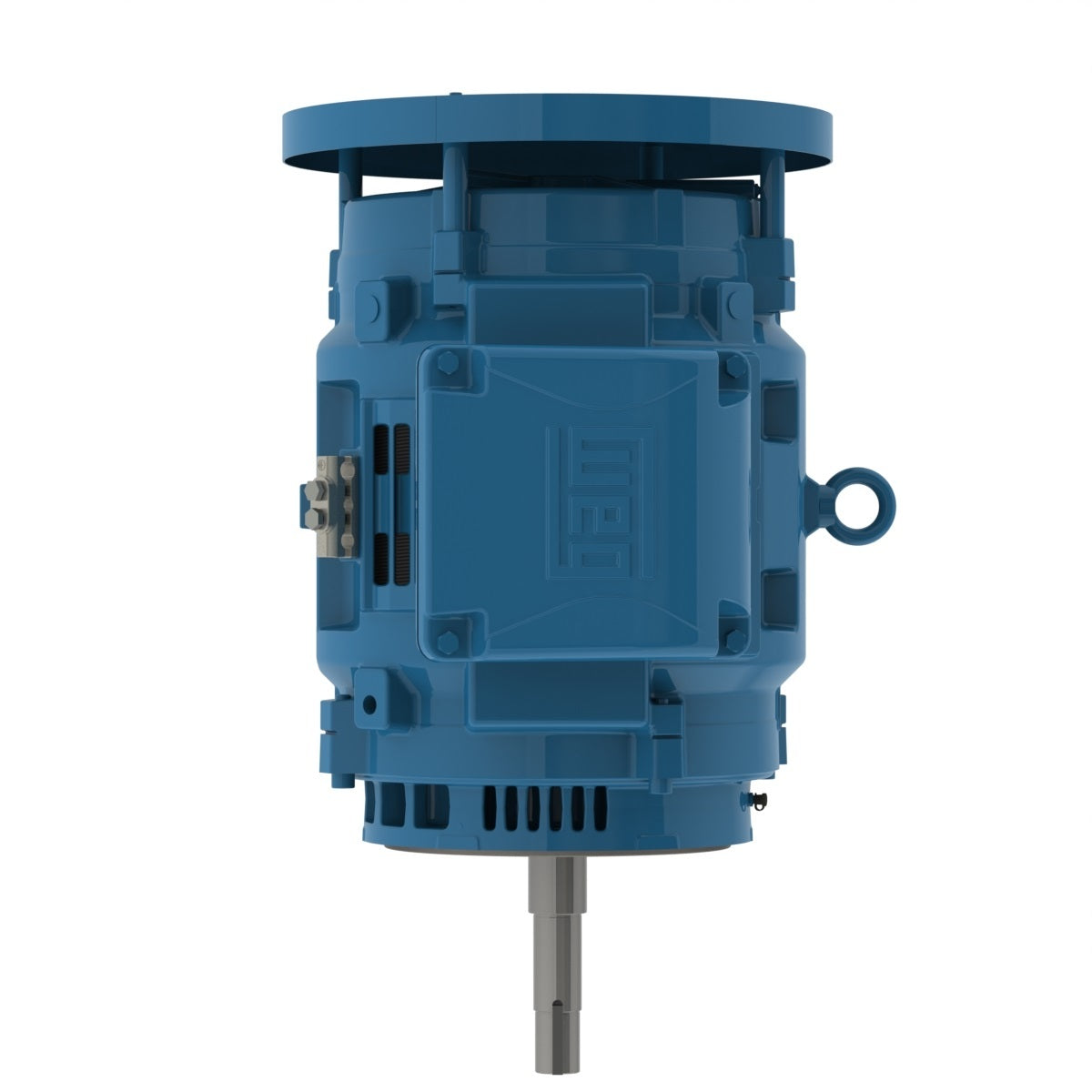

Weg Electric 06018OT3V364JPV-W40, 60 Hp, 1800 Rpm, 364/5JP Frame, 200/400 Vac, TEFC, 3 PH, Footless, W22 JP Pump NEMA Premium Efficiency.

06018OT3V364JPV-W40, 60 Hp, 1800 Rpm, 364/5JP Frame, 200/400 Vac, TEFC, 3 PH, Footless, W22 JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 4
Degree of Protection IP23
Synchronous speed 1800 rpm
Output rating 60 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 364/5JP
Output 60 HP (45 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 200/400 V
Rated current 161/80.4 A
L. R. Amperes 1045/523 A
LRC 6.5x(Code G)
No load current 56.8/28.4 A
Rated torque 177 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 34s (cold) 19s (hot)
Moment of inertia (J) 15.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 69.0 dB(A)
