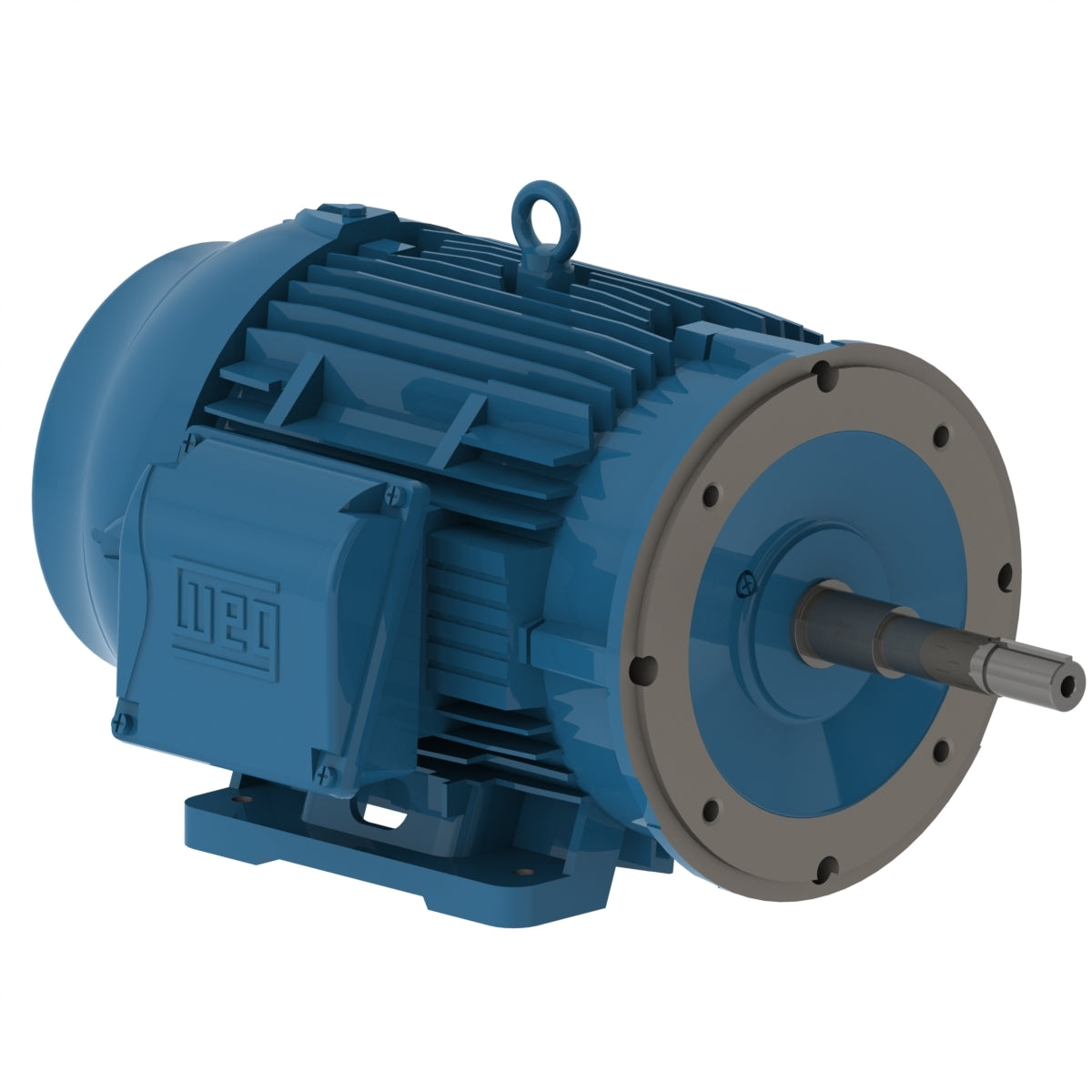

Weg Electric 06036ET3E326JM-W22, 60 Hp, 3600 Rpm, 324/6JM Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted W22 Closed Coupled Pump JM NEMA Efficiency.

06036ET3E326JM-W22, 60 Hp, 3600 Rpm, 324/6JM Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted W22 Closed Coupled Pump JM NEMA Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 60 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 324/6JM
Output 60 HP (45 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3565 rpm
Slip 0.97 %
Rated voltage 208-230/460 V
Rated current 155-140/70.0 A
L. R. Amperes 1209-1092/546 A
LRC 7.8x(Code J)
No load current 38.6-45.6/22.8 A
Rated torque 88.4 ft.lb
Locked rotor torque 290 %
Breakdown torque 300 %
Locked rotor time 23s (cold) 13s (hot)
Moment of inertia (J) 5.02 sq.ft.lb
Design A
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 78.0 dB(A)
