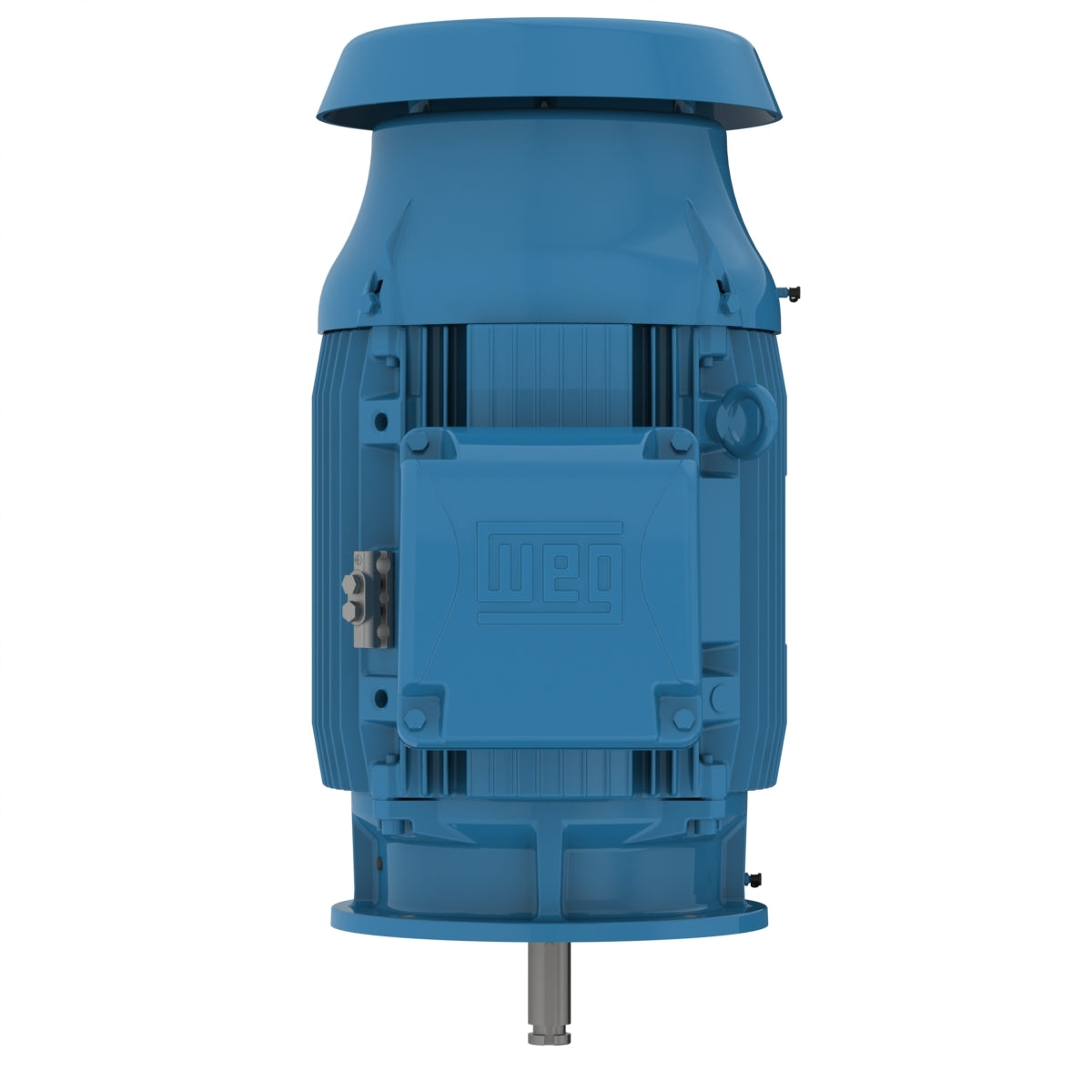

Weg Electric 06036ET3E364HP-W22, 60 Hp, 3600 Rpm, 364/5HP Frame, 230/460 Vac, TEFC, 3 PH, Footless, W22 P Base NEMA Premium Efficiency.

06036ET3E364HP-W22, 60 Hp, 3600 Rpm, 364/5HP Frame, 230/460 Vac, TEFC, 3 PH, Footless, W22 P Base NEMA Premium Efficiency.

Engineering Data

Line of vertical motors with flange type P. For application on irrigation pumps, water treatment, petrochemical industry, among others, in environments with dust and humidity demanding high torque.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 230/460 V
Number of poles 2
Degree of Protection IP55
Synchronous speed 3600 rpm
Output rating 60 HP
Mounting Footless
Flange P
Mounting W-6
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 364/5HP
Output 60 HP (45 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 134/67.0 A
L. R. Amperes 884/442 A
LRC 6.6x(Code G)
No load current 30.0/15.0 A
Rated torque 88.5 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 10.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
