Industrial Motors

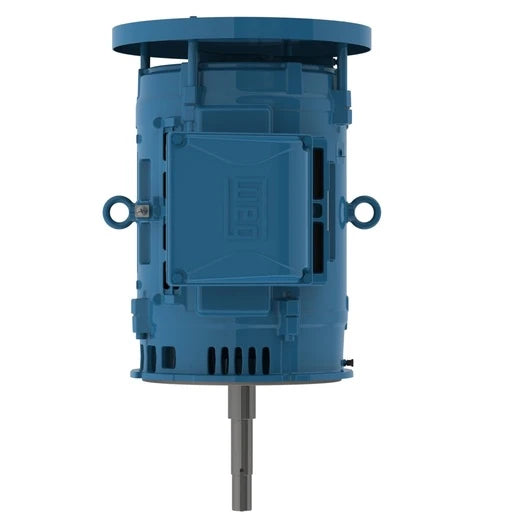

Weg Electric, 06036OT3E326JPV-W40, 60 Hp, 3600 Rpm, 324/6JP Frame, 230/460//380 Vac, ODP, 3 PH, Footless, W40 JM Pump High Efficiency, 14836792

Weg Electric, 06036OT3E326JPV-W40, 60 Hp, 3600 Rpm, 324/6JP Frame, 230/460//380 Vac, ODP, 3 PH, Footless, W40 JM Pump High Efficiency, 14836792

$5,127.29
$5,127.29
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric, 06036OT3E326JPV-W40, 60 Hp, 3600 Rpm, 324/6JP Frame, 230/460//380 Vac, ODP, 3 PH, Footless, W40 JM Pump High Efficiency, 14836792

SPECIFICATIONS

Frame 324/6JP
Output 60 HP (45 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3555 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 144/71.8 A
L. R. Amperes 905/453 A
LRC 6.3x(Code G)
No load current 44.0/22.0 A
Rated torque 88.6 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 3.82 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
Approx. weight³ 480 lb
