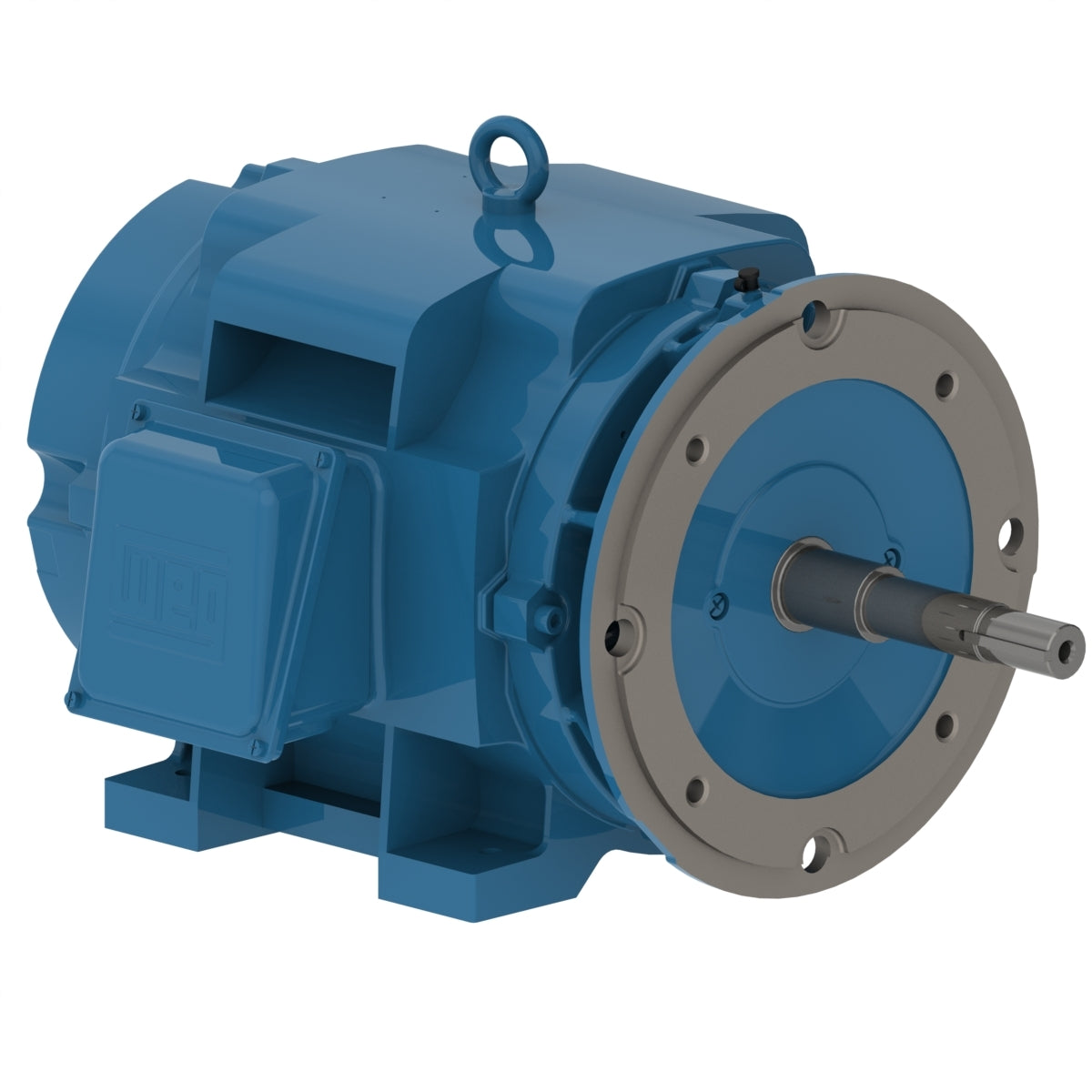

Weg Electric 06036OT3Q326JP, 60 Hp, 3600 Rpm, 326JP Frame, 460 Vac, ODP, 3 PH, Foot-mounted, Closed Coupled Pump NEMA Premium Efficiency.

06036OT3Q326JP, 60 Hp, 3600 Rpm, 326JP Frame, 460 Vac, ODP, 3 PH, Foot-mounted, Closed Coupled Pump NEMA Premium Efficiency.

Engineering Data

W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 460 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 60 HP
Mounting Foot-mounted
Flange C
Mounting F-1
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 326JP
Output 60 HP (45 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 460 V
Rated current 71.0 A
L. R. Amperes 426 A
LRC 6.0x(Code G)
No load current 21.5 A
Rated torque 88.5 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 43s (cold) 24s (hot)
Moment of inertia (J) 4.36 sq.ft.lb
Design B
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
