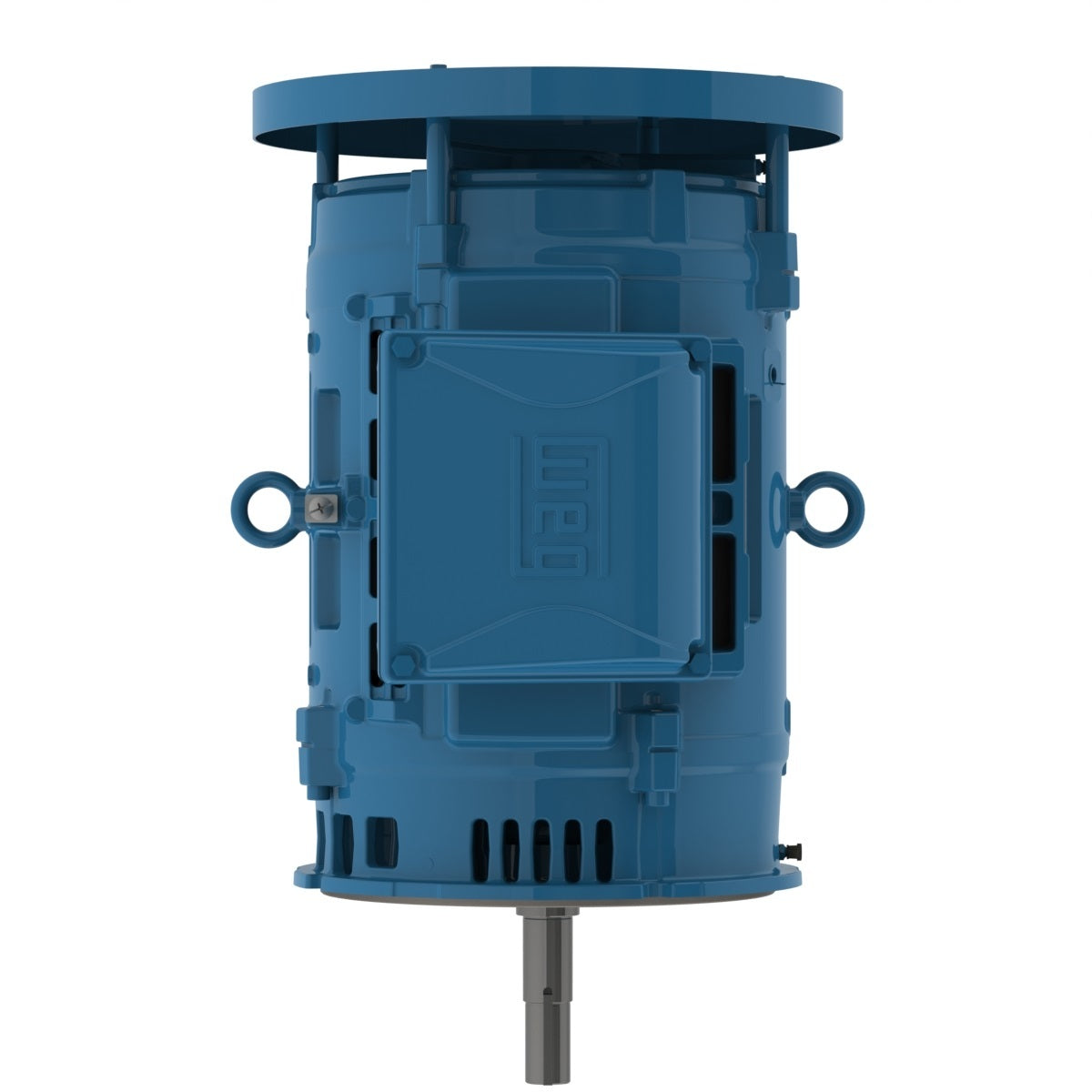

Weg Electric 06036OT3V326JPV-W40, 60 Hp, 3600 Rpm, 324/6JP Frame, 200/400 Vac, ODP, 3 PH, Foot-mounted, W40 JP Pump NEMA Premium Efficiency.

06036OT3V326JPV-W40, 60 Hp, 3600 Rpm, 324/6JP Frame, 200/400 Vac, ODP, 3 PH, Foot-mounted, W40 JP Pump NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60 Hz
Voltage 200/400 V
Number of poles 2
Degree of Protection IP23
Synchronous speed 3600 rpm
Output rating 60 HP
Mounting Footless
Flange C
Mounting W-6
Terminal box¹ Left position
Enclosure IC01 - ODP

Frame 324/6JP
Output 60 HP (45 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 200/400 V
Rated current 163/81.7 A
L. R. Amperes 1029/514 A
LRC 6.3x(Code G)
No load current 46.0/23.0 A
Rated torque 87.3 ft.lb
Locked rotor torque 220 %
Breakdown torque 229 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 3.82 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP23
Enclosure IC01 - ODP
Mounting W-6
Rotation¹ Both (CW and CCW)
Noise level² 75.0 dB(A)
