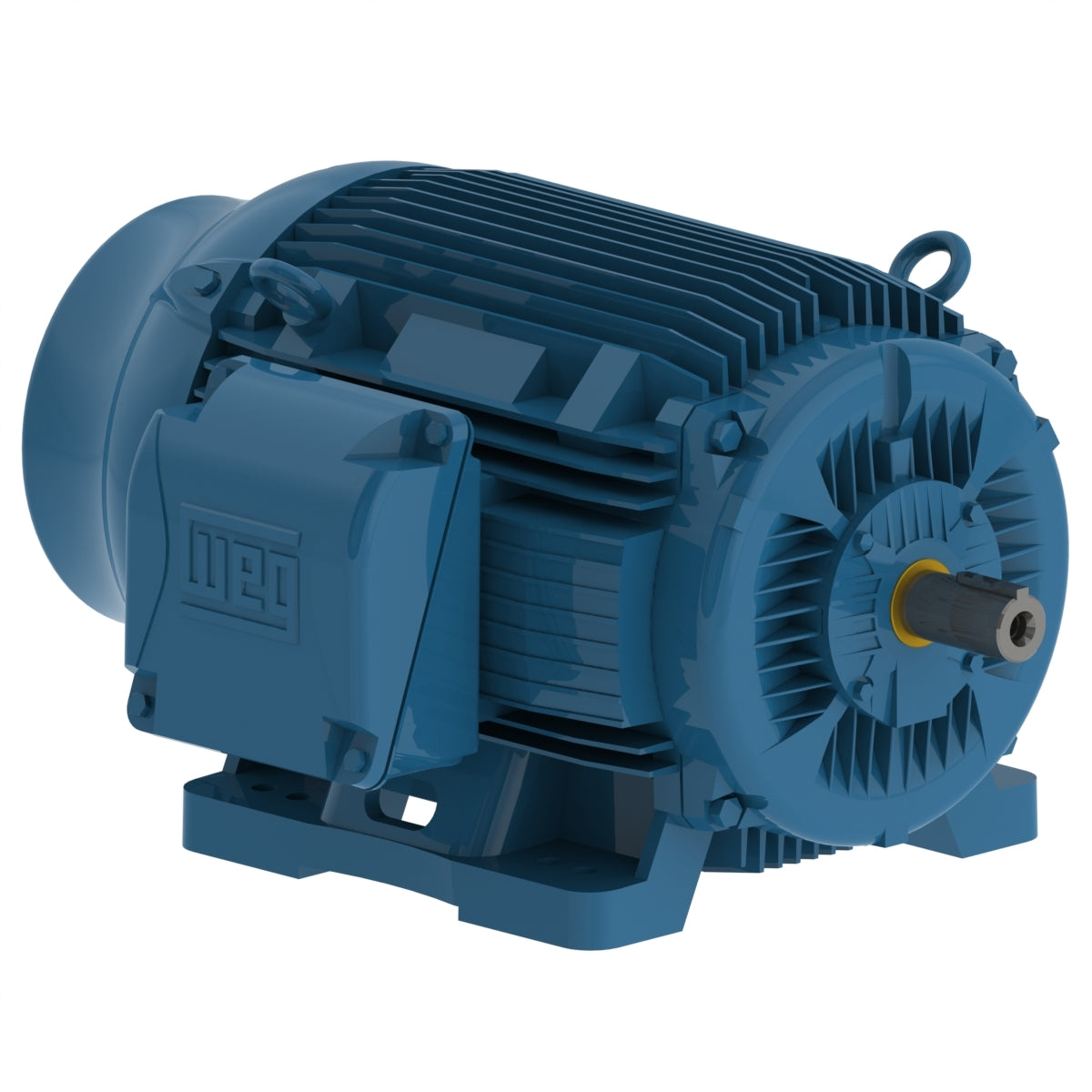

Weg Electric 07509ST3HIE444T-W22, 75 Hp, 444/5T Frame, 900 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 IEEE 841 NEMA Premium Efficiency, 15459792

Weg Electric 07509ST3HIE444T-W22, 75 Hp, 444/5T Frame, 900 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 IEEE 841 NEMA Premium Efficiency, 15459792

$20,876.73
$20,876.73
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 07509ST3HIE444T-W22, 75 Hp, 444/5T Frame, 900 RPM, 575 Vac, TEFC, 3 PH, Foot-mounted, W22 IEEE 841 NEMA Premium Efficiency, 15459792

SPECIFICATIONS

Manufacturer Part Number 07509ST3HIE444T-W22
Manufacturer WEG Electric
Family Series WEG Electric Motors
Description MOTOR 75HP 8P 444/5T WFF2
Type Severe Duty
Horsepower 76 hp
Kilowatts 55.9 kW
Speed 900 RPM
Number of Poles 8
Phase 3
Frequency 60 Hz
NEMA Frame 444/5T
AC Voltage 575 VAC
Enclosure Totally Enclosed Fan Cooled
Mounting Foot Mount
Current Rating 75.6 A
Service Factor 1.25
Inverter Duty No
Motor Type Foot Mount
Composition Cast Iron
Shaft Diameter 3.38 "
Overload Protection None
Length 45 "
Approvals cCSAus, cULus
Net Weight 1665.921 lbs
Gross Weight 1665.921 lbs
