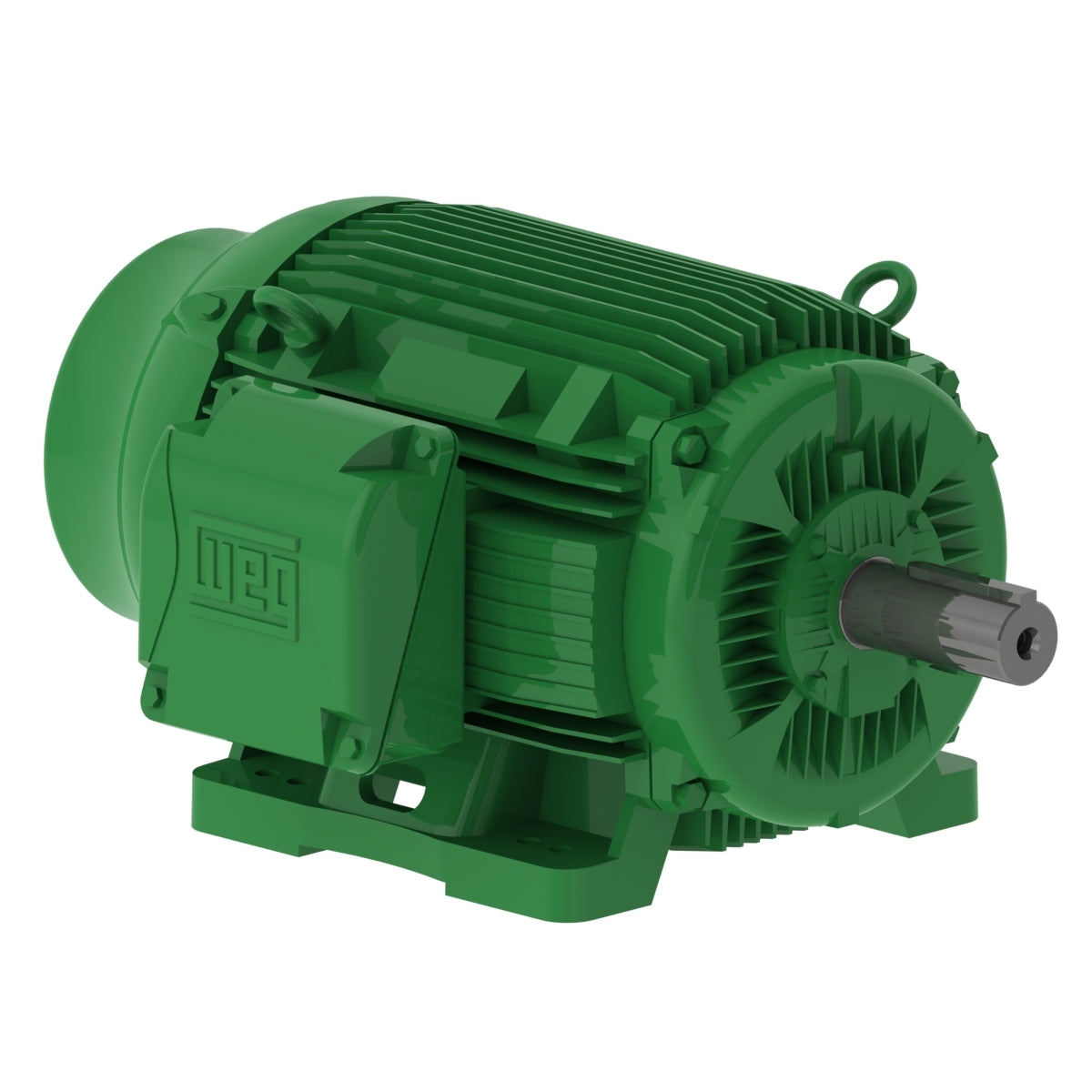

Weg Electric 07512EG3E405T-W22, 75 Hp, 1200 Rpm, 404/5T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Super NEMA Premium Efficiency.

07512EG3E405T-W22, 75 Hp, 1200 Rpm, 404/5T Frame, 208-230/460 Vac, TEFC, 3 PH, Foot-mounted, W22 Super NEMA Premium Efficiency.

Engineering Data

With cast iron frame, flexible mounting, solid feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications. Carry CSA Certified for Division 2 on the Nameplate as standard.

Product features
Standard NEMA MG-1
Frequency 60 Hz
Voltage 208-230/460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1200 rpm
Output rating 75 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1190 rpm
Slip 0.83 %
Rated voltage 230/460 V
Rated current 179/89.3 A
L. R. Amperes 1429/714 A
LRC 8.0x(Code J)
No load current 86.0/43.0 A
Rated torque 331 ft.lb
Locked rotor torque 280 %
Breakdown torque 300 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 41.3 sq.ft.lb
Design A
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
