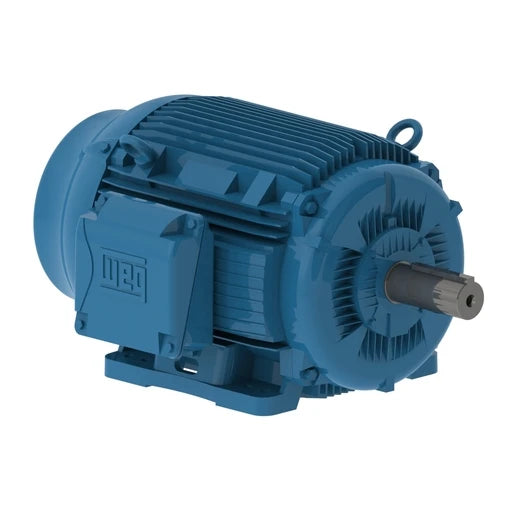

Weg Electric 07512ET3E405T-W22G, 75 Hp, 1200 Rpm, 404/5T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 13273081

Weg Electric 07512ET3E405T-W22G, 75 Hp, 1200 Rpm, 404/5T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 13273081

$11,799.62
$11,799.62
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Weg Electric 07512ET3E405T-W22G, 75 Hp, 1200 Rpm, 404/5T Frame, 230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W22 NEMA Premium Efficiency, 13273081

SPECIFICATIONS



Frame 404/5T
Output 75 HP (55 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1184 rpm
Slip 1.33 %
Rated voltage 230/460 V
Rated current 170/84.9 A
L. R. Amperes 1087/543 A
LRC 6.4x(Code G)
No load current 60.0/30.0 A
Rated torque 333 ft.lb
Locked rotor torque 229 %
Breakdown torque 229 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 40.2 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 1188 lb
