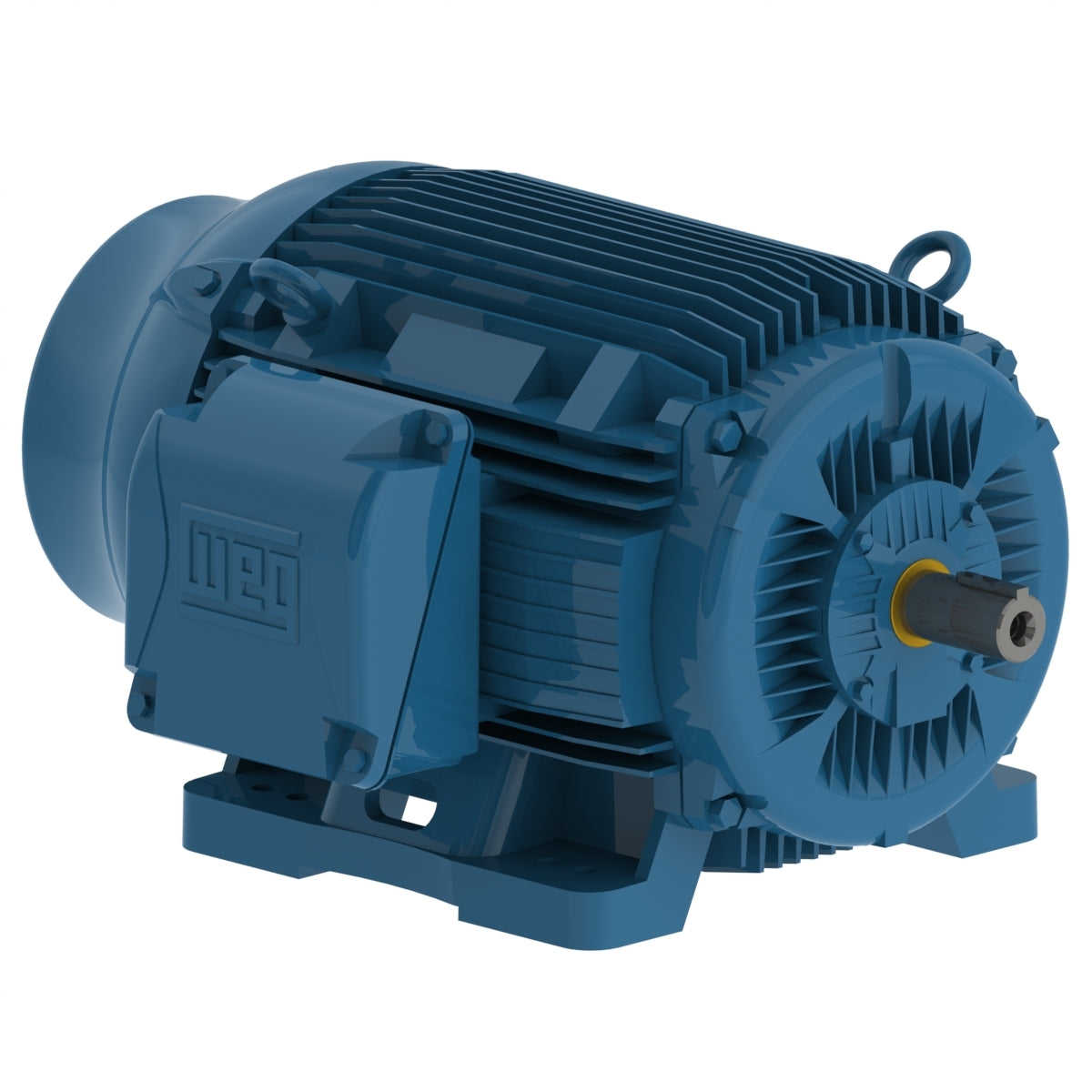

Weg Electric 07518ET3E365T-W22G, 75 Hp, 364/5T Frame, 1800 RPM, 208-230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W2 NEMA Premium Efficiency.

07518ET3E365T-W22G, 75 Hp, 364/5T Frame, 1800 RPM, 208-230/460//380 Vac, TEFC, 3 PH, Foot-mounted, W2 NEMA Premium Efficiency.

Engineering Data

Standard NEMA MG-1
Frequency 60//50 Hz
Voltage 208-230/460//380 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1800 rpm
Output rating 75 HP
Mounting Foot-mounted
Flange Without
Mounting F-1
Terminal box¹ Left position
Enclosure IC411 - TEFC

Frame 364/5T
Output 75 HP (55 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 208-230/460 V
Rated current 186-174/87.2 A
L. R. Amperes 1190-1114/558 A
LRC 6.4x(Code G)
No load current 56.9-66.0/33.0 A
Rated torque 221 ft.lb
Locked rotor torque 240 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Design B
Insulation Class F
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
